1. Spresense Arduino Sketch App Development

To quickly get started writing sketches you can use the example files. These examples are included in the Spresense Arduino Library and are available at File > Examples > Spresense.

Many existing Arduino sketches and libraries run on Spresense. Some of these sketches are for different hardware. You will need to modify these sketches. For an overview of the hardware features, see Differences between Spresense and Arduino Uno.

1.1. Functional Differences

The following Arduino language functions behave differently on Spresense and Arduino Uno:

LEDs

The Spresense main board has 4 LEDs: LED0, LED1, LED2, and LED3. LED0 can also be addressed using the name LED_BUILTIN for compatibility with existing sketches.

To control the LEDs, configure the LED as an output using pinMode() and call digitalWrite().

EEPROM

The Spresense doesn’t have EEPROM, but the EEPROM library emulates EEPROM using the flash memory. If you want to handle persistent data, you can use the EEPROM library or the SD card on the extension board.

Serial

The Spresense has two UART serial ports. You can access these ports with the Arduino SDK. The main board’s USB port is addressed as Serial and the logic-level pins DO0 and DO1 are addressed as Serial2.

The main board USB serial port can be used for your application, but be aware that it is also used to provide error messages from the NuttX operating system. These can be helpful in debugging your sketch.

The second parameter, like Serial.begin(115200, SERIAL_8E1), allows you to set the data length, the parity, and the stop bit. If the argument is none, the default value is SERIAL_8N1 with 8 bits of data length, no parity and 1 stop bit.

Parameter Data length Parity Stop bit

SERIAL_5N1

5

none

1

SERIAL_6N1

6

none

1

SERIAL_7N1

7

none

1

SERIAL_8N1

8

none

1

SERIAL_5N2

5

none

2

SERIAL_6N2

6

none

2

SERIAL_7N2

7

none

2

SERIAL_8N2

8

none

2

SERIAL_5E1

5

even

1

SERIAL_6E1

6

even

1

SERIAL_7E1

7

even

1

SERIAL_8E1

8

even

1

SERIAL_5E2

5

even

2

SERIAL_6E2

6

even

2

SERIAL_7E2

7

even

2

SERIAL_8E2

8

even

2

SERIAL_5O1

5

odd

1

SERIAL_6O1

6

odd

1

SERIAL_7O1

7

odd

1

SERIAL_8O1

8

odd

1

SERIAL_5O2

5

odd

2

SERIAL_6O2

6

odd

2

SERIAL_7O2

7

odd

2

SERIAL_8O2

8

odd

2

Also, Serial2 supports hardware flow control. Hardware flow control is enabled by adding SERIAL_RTSCTS like Serial2.begin(115200, SERIAL_8N1 | SERIAL_RTSCTS). If the argument is none, hardware flow control is disabled by default.

Even if hardware flow control is disabled, you cannot use the UART2_RTS and UART2_CTS pins as GPIO.
Parameter Description

SERIAL_CTS

Enable CTS hardware flow control

SERIAL_RTS

Enable RTS hardware flow control

SERIAL_RTSCTS

Enable RTS/CTS hardware flow control

pinMode()

The extension board has pull-ups on all pins. This can alter the logic for some designs.

  • At startup all pins are pulled up.

  • When pins are set to input, they are pulled up. This can impact circuits with a pull-down resistor.

  • When the pin is set to output, digitalWrite() will be set, whether the pin is high or low.

pinMode() sets the specified pin to GPIO mode, but note that the mode setting is controlled in units of pin groups. For example, in the case of SPI, the 4 pins CS, SCK, MOSI, and MISO belong to the same group, and if pinMode() specified as the argument of CS pin is called, it will not be able to operate as the SPI function. For more information about the pin groups, see Connector pin list (xlsx).
analogRead()

Spresense has 6 dedicated analog pins. These pins are not shared with digital pins. They must be addressed as A0 to A5.

Channel A0 to A3 are slower ADCs with a sample rate of about 65 Hz. Channel A4 and A5 are faster ADC with a sample rate of about 6 kHz.

For advanced users higher ADC performance can be achieved using the Spresense SDK.

analogReadMap() [extended]

The analogRead() function gets a signed 16-bit value (signed short) from the ADC and maps it to a value between 0 and 1023 using the map(value, fromLow, fromHigh, toLow, toHigh) function.

The analogReadMap() function allows you to change the fromLow and fromHigh used for the map() function. Also, if min and max of analogReadMap() are set to the same value, the analogRead() function will return the raw ADC value without any conversion by map().

API

void analogReadMap(uint8_t pin, int16_t min, int16_t max);

Parameter

pin : 0 ~ 5 or A0 ~ A5 analog pin number
min : the value of fromLow used for map() function
max : the value of fromHigh used for map() function

analogReference()

analogReference() is not supported. The reference voltage for analog input use for Spresense is fixed.

F()

The Arduino F() macro is defined as Null, the function does nothing. This allows existing code using F() compile without error.

PROGMEM

The Arduino function PROGMEM() is defined as Null, the function does nothing. This allows existing code using PROGMEM() compile without error.

Interrupts - Digital pin

The interrupt number for the digital pin is dynamically assigned within the attachInterrupt() function.

attachInterrupt (pin, ISR, mode, filter=true);

Where

pin

the pin number, for example D05.

ISR

the ISR to call when the interrupt occurs; this function must take no parameters and return nothing. This function is sometimes referred to as an interrupt service routine.

mode

defines when the interrupt should be triggered. Four constants are predefined as valid values:

LOW

to trigger the interrupt whenever the pin is low,

CHANGE

to trigger the interrupt whenever the pin changes value

RISING

to trigger when the pin goes from low to high,

FALLING

for when the pin goes from high to low.

HIGH

to trigger the interrupt whenever the pin is high.

filter

defines if a debounce filter is enabled or not. The debounce filter has been implemented for digital pin interrupts. This introduces a short delay and prevents a second interrupt occurring within 3 RTC (32.768 kHz) cycles (about 100us) of the first interrupt. Therefore, interrupts may not be acquired for signals which change very rapidly.

true

Enable the debounce filter. (default)

false

Disable the debounce filter.

digitalPinToInterrupt() is defined as an empty macro, to retain compatibility with existing code and can be used in the following way.

attachInterrupt (digitalPinToInterrupt (pin), ISR, mode);

digitalPinToInterrupt (pin) should not be used in the form

x = digitalPinToInterrupt (pin);
attachInterrupt (x, ISR, mode);

The maximum number of interrupts that can be registered is fixed, and up to 6 interrupts can be registered from the SYS GPIO group and up to 6 interrupts can be registered from the APP GPIO group, up to 12 interrupts in total. When attachInterrupt() is called beyond the upper limit, the error message ERROR: Out of interrupt resources will be displayed on the serial monitor. See below for which group each pin number belongs to in SYS/APP GPIO.

  • Up to 6 pins from SYS GPIO (LTE library uses one pin for modem operation.)

    D02, D03, D04, D05, D06, D07, D08, D09, D14, D15, D22, D29, D30, D31, D32, D39, D40, D41, D42, D43, D44

  • Up to 6 pins from APP GPIO (One pin is used for SD card detection.)

    D00, D01, D10, D11, D12, D13, D16, D17, D18, D19, D20, D21, D23, D24, D25, D26, D27, D28, D33, D34, D35, D36, D37, D38

Interrupts - Timer

Timer interrupts can be implemented using attachTimerInterrupt(ISR,period). This function uses the same timer resource as tone (), so it can not be used with tone () at the same time.

Where

ISR

the ISR to call when the interrupt occurs; this function must return the next timer period in microseconds. If this function returns 0, the timer stops and it behaves as oneshot timer. The maximum value is about 26 seconds and if it exceeds, an error occurs.

period

defines the timer period in microseconds after the attachTimerInterrupt.

Since this function is called from an interrupt handler, there are restrictions on callable API. For example, you can not use the Analog I / O function from within this function

micros()

micros() returns the elapsed time in microseconds since the power was turned on.

The resolution of the micros() timer is approximately 30 microseconds. It is based on a 32768 Hz oscillator.

API

uint64_t micros(void);

Returns

The return value is an unsigned 64-bit integer.

millis()

millis() returns the elapsed time in milliseconds since the power was turned on.

API

uint64_t millis(void);

Returns

The return value is an unsigned 64-bit integer.

Fast digital I/O

Apart from the usual digitalRead and digitalWrite functions, this section describes functions for faster I/O control of digital pins.

Function Description

digitalPinToPort(pin)

uint8_t port = digitalPinToPort(PIN_Dxx);
It converts a PIN_Dxx digital pin number to a port number and is used as an argument of portRegister function.

portInputRegister(port)

volatile uint8_t *in = portInputRegister(digitalPinToPort(PIN_Dxx));
Inputs the port number converted by the digitalPinToPort function, and returns the GPIO input register.
The value read from the register indicates 0: Low, 1: High.

portOutputRegister(port)

volatile uint8_t *out = portOutputRegister(digitalPinToPort(PIN_Dxx));
Inputs the port number converted by the digitalPinToPort function, and returns the GPIO output register.
The value to be written to the register is 0: Low, 1: High.

portModeRegister(port)

volatile uint8_t *mode = portModeRegister(digitalPinToPort(PIN_Dxx));
Inputs the port number converted by the digitalPinToPort function, and returns the GPIO direction register.
The value to be written to the register is 0: Output, 1: Input.
In addition to this register control, the pin function needs to be set to GPIO mode. Therefore,
- call pinMode(PIN_Dxx, INPUT) when the pin is used as input pin
- call pinMode(PIN_Dxx, OUTPUT) when the pin is used as output pin

digitalPinToBitMask(pin)

uint8_t mask = digitalPinToBitMask(PIN_Dxx);
Always returns a fixed value of 0x01.
The Input, Output, and Mode registers are all controlled using the least significant bit (0x01).

Example of reading the input value of PIN_D22 pin
/* Set pin to input mode */
pinMode(PIN_D22, INPUT);

volatile uint8_t *port = portInputRegister(digitalPinToPort(PIN_D22));
volatile uint8_t *mode = portModeRegister(digitalPinToPort(PIN_D22));

*mode = 1; /* Input setting */

uint8_t val = *port; /* Read */
if (val & 1)
  Serial.println("High");
else
  Serial.println("Low");
Example of changing the output value of the PIN_LED0 pin
/* Set pin to output mode */
pinMode(PIN_LED0, OUTPUT);

volatile uint8_t *port = portOutputRegister(digitalPinToPort(PIN_LED0));
volatile uint8_t *mode = portModeRegister(digitalPinToPort(PIN_LED0));

*mode = 0; /* Output setting */

*port = 1; /* High */
*port = 0; /* Low  */

1.2. Spresense Libraries

The Spresense Arduino Library also provides a range of built-in libraries. These are described in the Spresense Arduino Libraries section.

1.3. Memory Usage

As a feature of Spresense, the compiled sketch is installed into the flash memory. When it is executed, all the data including complied code and read-only data, are copied from the flash memory to the RAM and executed from the RAM.

The maximum RAM available is 768 kilobytes (= 786432 bytes) by default. Which is half of the size of application SRAM of 1.5 MB.

If the program size of sketch exceeds the available maximum RAM size, the compilation will fail and an error will occur.

A memory usage report is generated when you compile a sketch on the Arduino IDE. This report allows you to check the memory consumption. For example:

Sketch uses xxxxxx bytes (xx%) of program storage space. Maximum is 786432 bytes.
Global variables use xxxxxx bytes (xx%) of dynamic memory, leaving xxxxxx bytes for local variables. Maximum is 786432 bytes.

In this report, some terms have different meaning from the original.

program storage space

it means the available maximum RAM size.

dynamic memory

it means the static RAM size used by a sketch.

local variables

it means the remaining RAM size (= program storage space - dynamic memory)

There is a dynamically allocated heap area besides the statically used memory. This heap area is allocated from the remaining RAM called local variables. Therefore, when you program a sketch, it is necessary to leave the remaining RAM size for the heap area. If the size used by a sketch exceeds 75% of the total, a warning message of Low memory available, stability problems may occur. will be generated as a guide. Then, you can review the memory size used by the sketch program.

1.4. Arduino memory size configuration

A typical memory configuration for the application SRAM 1.5 MByte is shown below.

Diagram

The application SRAM is divided into memory blocks called tiles in 128 KByte units.

In the default memory configuration, MainCore is allocated the first six tiles (768 KBytes) and the remaining six tiles (768 KBytes) are shared with SubCore, Audio DSP, and other libraries.

You can change the memory size allocated to MainCore from Arduino IDE menu.

The memory size used by SubCore is automatically determined when you build a SubCore sketch.
arduino memsize

Maximum 1.5 MByte (1536 KB) of memory can be allocated to the user sketch in usecases without SubCore, Audio DSP. On the other hand, if you want to increase the memory size for SubCore and Audio DSP, you can reduce the size allocated to MainCore from 768 KB. Change the memory size according to the your usecase.

2. Spresense Arduino Libraries

2.1. Audio Library

Spresense audio library supports audio playback and audio recording, and uses SD card for file storage. This allows simple sketches to make use of the high resolution audio features.

Spresense has a high performance ADC and DAC with full digital amplifier which are controlled by the audio library.

The Spresense has six CPU cores. One of these is used as the application CPU which runs your sketch. The other five are called DSPs. The DSP cores perform audio signal processing, such as decoder and encoder. DSP binaries are provided here for easy and efficient audio application development.

  • Currently, the high resolution audio supports 24 bit, 192 kHz and it is available for WAV (LPCM).

  • You need to pre-install the appropriate DSP codec binary file and specify the installation location from your application. Details about installation are described in the DSP codec files section.

The main features of the library are:

  • Audio recorder and capture

  • Audio player and renderer

  • Sound effector (for example, a bandpass filter for voice calls)

  • Sound sensing (for example, noise measurement, abnormal sound detection, etc.)

The features above support:

  • Volume control

  • Balance (L/R Gain)

  • Beep generation - Please note this produces a tone output to the headphone directly, unlike the Arduino tone() function which produces an output to one of the Arduino header pins.

The audio library allows selection of input and output channel.

Audio Input Channels are:

  • Analog microphone

  • Digital microphone

  • I2S

Audio Output Channel are:

  • Analog headphone

  • I2S

DSP codecs are available to support for multiple audio formats such as:

  • MP3

If the MP3 file has ID3v2 TAG, the decoder will generate an error message and is not able to play the audio file. Please remove the tag information with tools such as MP3Tag if your MP3 file has large metadata such as image data.
  • WAV (PCM)

Spresense can record and playback a range of sampling rates and bitrates when using compression.

For more detailed information see Audio Subsystem.

2.1.1. Pre-requisites for Audio

Please prepare these before using the audio library:

  • Spresense main board

  • Spresense extension board

  • Microphone for recording

  • Headphones for play back

  • MicroSD card

Spresense extension board has dedicated pins for audio and SD card, so all Arduino header pins remain available for other applications. For simple audio applications analog stereo input and output will be used.

  • Spresense extension board has a 3.5mm stereo headphone connector and a microphone interface.

For more detailed information on the pinout for the other audio connections please check How to use microphones, How to use speakers.

2.1.2. About layer structure

The stack diagram of the audio subsystem is shown below.

Audio Sub-system Stack Diagram
Figure 1. Audio Sub-system Stack diagram
High Level Interface

The highest layer, the layer can control at the highest level of abstraction. It controls while maintaining the integrity of the entire system.

The Arduino library uses only one class that AudioClass.

The functions that can be used are

  • Audio playback (rendering)

  • Audio recording (capture)

  • Microphone output (no signal processing)

  • Beep pronunciation

    And so on.

Object Level Interface

Functions block units (Objects) with a certain degree of abstraction such as Audio Recording Block and Audio Playback Block units are used as the API layer, and they connect in various patterns, an interface that allows the development of applications with highe flexibilities.

Detailed signal processing, DSP processing, etc in each Object are consistented within the Object.

This makes it possible to realize functions that are not defined in the High Level Interface.

Each object is

  • Audio capture function (MicFrontEnd Object)

  • Recording function (Recorder Object)

  • Playback function (Player Object)

  • Audio rendering function (OutputMixer Object)

  • Microphone output with signal processing (MicFrontEnd & OutputMixer Object)

  • Recognizer function (Recognizer Object)

  • Synthesizer function (Synthesizer Object)

    And so on.

Low Level Interface (not supported)

Primitive signal processing block units (Components) such as voice decoding, encoding, and equalizing are used as the API layer, and they connect in various patterns, the interface provides that allows applications with very high flexibilities to be developed. However, the application must make adjustment of the each signal processings.

Currently, Low Level Interface is not supported.

2.1.3. DSP Codec Binary Installation

To use various Audio functions, it is necessary to install a binary called DSP that implements proprietary signal processing in SubCore. The procedure to install the binary file is as follows.

2.1.4. About High Level Interface

It will be the layer with the highest level of abstraction. It is easy to use, but its functions (operation mode) are limited.

Only one class object is used, AudioClass, and it can be used by defining it as below and creating an instance.

#include <Audio.h>

AudioClass *theAudio;
theAudio = AudioClass::getInstance();

This High Level Interface has the following state transitions.

Diagram

The explanation of each mode is as below.

  • Ready state

This is the state immediately after creating an object of the audio subsystem and starting it.
When not using audio, transitioning to this state will reduce the power consumption of the audio block to almost 0.

By setReadyMode the state can transite to the Ready state.

The state transition is as follows.

By setPlayerMode the state can transite to the Player state.
By setRecorderMode the state can transite to the Recorder state.
By setThroughMode the state can transite to the Through state.

  • Player status

It is a state to realize the function of decoding compressed audio files from SD cards and networks and pronouncing them to Analog Out and I2S.
There are two sub-states in the state, PlayerReady state and PlayerActive state.
PlayerReady state is the state in which music playback is stopped. Doxygen:startPlayer[] transitions to PlayerActive state and plays music.
The PlayerActive state is the state during music playback.
stopPlayer transitions to PlayerReady state and stops music playback.

You can have two instances of Player.
These instances has each sub-state of Player independently.

By setReadyMode the state can transite to the Ready state.

  • Recorder state

It is a state that realizes the function of compressing the audio data input from Mic and writing it to storage such as SD card, or upload it to a network such as WiFi/LTE and recording it.

There are two sub-states in the state, RecorderReady state and RecorderActive state.
RecorderReady state is the state where voice recording is stopped. Doxygen:startRecorder[] transitions to RecorderActive state and performs audio recording operation.
RecorderActive state is the state during audio recording. stopRecorder transitions to RecorderReady state and stops audio recording.

setReadyMode only transitions to the Ready state.

By setReadyMode the state can transite to the Ready state.

  • Through state

It is a state that realizes the function to output the audio data input from (Analog/Digital) Mic to AnalogOut or I2S with very low power consumption and low delay without performing effect processing. This state has no sub-state.

By setReadyMode the state can transite to the Ready state.

2.1.4.1. About API of High Level Interface

For details on each API, refer to the API reference.

2.1.4.2. About the sample using High Level Interface

The sample using this High Level Interface is as below.

  • beep

  • dual_players

  • pcm_capture

  • player

  • player_hires

  • player_playlist

  • player_wav

  • rec_play

  • recorder

  • recorder_wav

  • through

See the tutorial for more information on each sample.

2.1.5. About Object Level Interface

In the case of High Level Interface, the operation mode is decided to some extent. If this mode alone does not provide the desired functionality, you may be able to achieve the desired functionality by using the Object Level Interface and combining Objects to configure the system.

When using this Object Level Interface, it is necessary to include and instantiate the class object for each object.

The outline of each object is as below.

  • Audio capture function (MicFrontEnd Object)

This object captures audio input from the microphone. The captured audio can be passed to other objects.

#include <Frontend.h>

FrontEnd    *theFrontEnd;
theFrontEnd = FrontEnd::getInstance();

The captured audio data is sent to the RecorderObject for encoding, and also sent to the RecognizerObject for voice recognition.
In addition, by sending it to OutputMixerObjcet and pronouncing it as it is, it is possible to pronounce the signal processed sound with less delay from the input.

Diagram
  • Recording function (Recorder Object)

Audio PCM data can be encoded and the resulting data can be obtained via SimpleFIFO or others.

#include <MediaRecorder.h>

MediaRecorder *theRecorder;
theRecorder = MediaRecorder::getInstance();
  • Playback function (Player Object)

The audio stream data supplied via SimpleFIFO can be decoded and can rendering to output device.The result can be obtained by the callback function.

#include <MediaPlayer.h>

MediaPlayer *thePlayer;
thePlayer = MediaPlayer::getInstance();

The decoded PCM data can pronounce it by sending to OutputMixerObjcet.

Diagram
  • Rendering function (OutputMixer Object)

It renderings the received audio data.

#include <OutputMixer.h>

OutputMixer *theMixer;
theMixer  = OutputMixer::getInstance();
  • Recognizer Object (not supported)

It performs sound recognition of the received audio data.

  • Synthesizer Object (not supported)

It generates audio data based on the specified parameters.

The generated audio data can be pronounced by sending it to the OutputMixerObject .

Diagram
2.1.5.1. Examples of each combined objects and functions

See the sample for each Object Level Interface and its Tutorial.

2.1.5.2. About the API of Object Level Interface

For details of each API, refer to the API reference.

2.1.5.3. About the examples using Object Level Interface

The examples using this Object Level Interface is as follows.

  • dual_players_objif

  • pcm_capture_objif

  • player_objIf

  • recorder_objif

  • recorder_wav_objif

  • recorder_with_rendering

See the tutorial for more information in the form of result data for each error notification.

2.1.6. Important point of various operations

Here are some notes about each operation.

2.1.6.1. Audio frequency constraints

The Audio function of Spresense can select only 48kHz sampling or 192kHz sampling for input/output audio data from HW due to HW restrictions.Therefore, the internal processing will be performed with 48kHz sampling or 192kHz sampling unless resampling with SW is performed.

2.1.6.2. Constraints on audio capture size and PCM data read

The audio capture operation by FrontEnd Object of Spresense has a maximum frame size of 1024 samples due to HW constraints. Also, from the viewpoint of real-time processing, the minimum number of samples is 240 samples. Therefore, the frame size that can be specified with the init function is 240 to 1024.

Also, due to the above restrictions, the frame size of the audio capture operation and WAV recording operation is 768 samples in the Audio class in the High Level Interface and the MediaRecorder Object & FrontEnd Object in the Object Level Interface.

readFrames does not depend on the size of the buffer, and if there is readable data, it reads for that size. So, if you want to read the data to fill the buffer, repeat readFrames until you write the rest, or wait long enough for the data to complete.

When resampling with SRC(Sampling Rate Converter), the frame size to be read changes depending on the multiple ratio. Please refer to the following.

Table 1. Arduino Audio Max Capture Size
Samplingrate Max samples

16kHz

341

48kHz

1024

192kHz

1024

2.1.7. DSP codec files

It is important that the DSP codec binary files can be accessed from the sketch when using the Audio library. The player and recorder examples put these files on the SD Card and use the location /mnt/sd0/BIN/ in initPlayer() or initRecorder() .

It is also possible to store the codec binary files in the SPI Flash memory on the main board using the DSP installer sketches described below. This uses the location /mnt/spif/BIN/ in initPlayer() or initRecorder(). If you install the DSP codec binary files to the SPI Flash memory, you will need to modify the example sketches accordingly.

Table 2. DSP binaries
DSP file name installer sketch Description

MP3DEC

mp3_dec_installer

Used for MP3 audio playback

WAVDEC

wav_dec_installer

Used for WAV (PCM) audio playback

MP3ENC

mp3_enc_installer

Used for MP3 audio recording

SRC

src_installer

Used for PCM audio recording

The DSP can be installed onto the SD card or on the flash. There are two ways to install the DSP binary:

  • Copy into the SD card using a PC

  • Use the DSP installer sketch.

It is only necessary to install the DSP binary once. There is no need to reinstall, as long as the files are not overwritten, deleted or the SDK is not updated.
  • In case of copying the DSP codec binary files to the SD card:

    Download the DSP file by clicking the DSP file name in the DSP binaries table. Please make a sub directory /BIN and copy the DSP binary file into the SD card /BIN folder.

In the audio player or recorder application program, it is necessary to specify the DSP installation location of the initPlayer() function or initRecorder() function. When you use the SD card, please specify /mnt/sd0/BIN . In the examples of audio applications, /mnt/sd0/BIN is used.

  • In case of using the DSP installer.

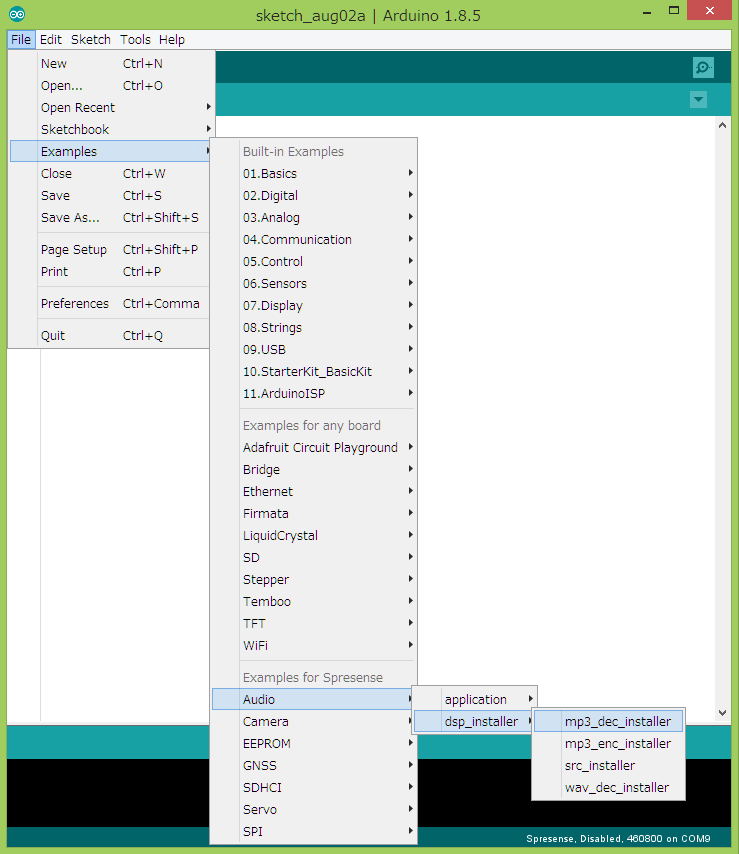

    The DSP installer is launched from Arduino IDE, to open it click on the toolbar menu: File → Examples → Examples for Spresense Audio → dsp_installer . There are different DSP installers available under dsp_installer folder, one for each DSP as shown in the table above. Use DSP binaries table and select the appropriate DSP installer for your design.

    arduino dsp installer en
    Figure 2. Launch DSP Installer

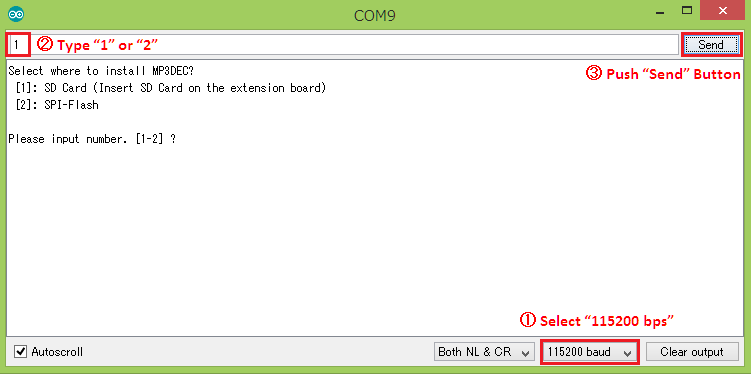

    Please open the Serial Monitor , after the sketch is done with compiling and uploading. Make sure you select the baudrate and specify where to install the DSP binary file. Follow the steps below:

    1. Open the Serial Monitor

    2. Select the Baudrate: For this example the baudrate is 115200

    3. Select where to install the binary file: Input [1] for SD Card or [2] for SPI-Flash. If you want to install to the SD card ( option[1] ), please insert the FAT-formatted SD card into the SD card slot on the Spresense extension board.

    4. Click on Send button

      arduino dsp installer monitor1 en
      Figure 3. Select the installation directory

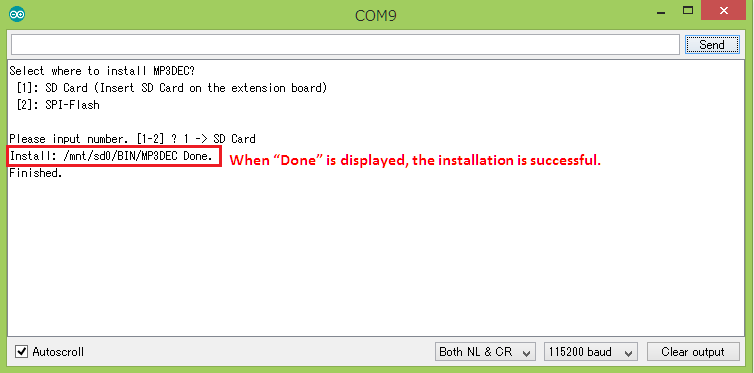

      If the installation is successful, you will see this message on the Serial Monitor, as shown in the picture below.

      arduino dsp installer monitor2 en
      Figure 4. Execute the installation

Please note that, the audio application calls the initPlayer() or initRecorder() function with the argument of the DSP installation directory. If you installed DSP binary to the SD card, you have to specify the /mnt/sd0/BIN . If you installed into the SPI Flash, you have to specify the /mnt/spif/BIN . In the examples of audio applications, /mnt/sd0/BIN is used.

2.1.8. Errors and its handling in the Audio libraries

There are two types of errors that occur in the Audio libraries: errors that occur from inside the SDK and errors that occur from the Arduino library.

2.1.8.1. Errors from the Arduino library
Table 3. Arduino Audio Lib Error Code
Error Code Value Description

AUDIOLIB_ECODE_OK

0

Normal termination

AUDIOLIB_ECODE_SHARED_MEMORY_ERROR

1

Shared Memory allocation error

AUDIOLIB_ECODE_SIMPLEFIFO_ERROR

2

Simple FIFO error

AUDIOLIB_ECODE_AUDIOCOMMAND_ERROR

3

API execution error

AUDIOLIB_ECODE_FILEACCESS_ERROR

4

File access error

AUDIOLIB_ECODE_FILEEND

5

End-of-file error

AUDIOLIB_ECODE_BUFFER_AREA_ERROR

6

Buffer area undefined error

AUDIOLIB_ECODE_BUFFER_SIZE_ERROR

7

Buffer size specification error

AUDIOLIB_ECODE_INSUFFICIENT_BUFFER_AREA

8

Buffer area shortage error

AUDIOLIB_ECODE_WAV_PARSE_ERROR

9

Unused

AUDIOLIB_ECODE_PARAMETER_ERROR

10

Parameter error

Table 4. Arduino FrontendObject Error Code
Error Code Value Description

FRONTEND_ECODE_OK

0

Normal termination

FRONTEND_ECODE_COMMAND_ERROR

1

API execution error

FRONTEND_ECODE_BASEBAND_ERROR

2

AudioDriver error

Table 5. Arduino RecorderObject Error Code
Error Code Value Description

MEDIARECORDER_ECODE_OK

0

Normal termination

MEDIARECORDER_ECODE_COMMAND_ERROR

1

API execution error

MEDIARECORDER_ECODE_BUFFER_INIT_ERROR

2

Buffer initialization error

MEDIARECORDER_ECODE_BUFFER_POLL_ERROR

3

Buffer polling error

MEDIARECORDER_ECODE_DSP_ACCESS_ERROR

4

DSP Binary File Access Error

MEDIARECORDER_ECODE_FILEACCESS_ERROR

5

File access error

MEDIARECORDER_ECODE_BUFFER_SIZE_ERROR

6

Buffer size specification error

MEDIARECORDER_ECODE_BUFFER_AREA_ERROR

7

Buffer area undefined error

MEDIARECORDER_ECODE_INSUFFICIENT_BUFFER_AREA

8

Insufficient buffer space error

MEDIARECORDER_ECODE_BASEBAND_ERROR

9

Unused

MEDIARECORDER_ECODE_BUFFER_ALLOC_ERROR

10

Buffer area allocation error

Table 6. Arduino PlyerObject Error Code
Error Code Value Description

MEDIAPLAYER_ECODE_OK

0

Normal termination

MEDIAPLAYER_ECODE_COMMAND_ERROR

1

API execution error

MEDIAPLAYER_ECODE_SIMPLEFIFO_ERROR

2

SimpleFIFO error

MEDIAPLAYER_ECODE_FILEACCESS_ERROR

3

File access error

MEDIAPLAYER_ECODE_FILEEND

4

File termination error

MEDIAPLAYER_ECODE_SHARED_MEMORY_ERROR

5

Unused

MEDIAPLAYER_ECODE_WAV_PARSER_ERROR

6

Unused

MEDIAPLAYER_ECODE_BUFFERSIZE_ERROR

7

Buffer size specification error

MEDIAPLAYER_ECODE_BUFFERALLOC_ERROR

8

Buffer area allocation error

Table 7. Arduino OutputMixerObject Error Code
Error Code Value Description

OUTPUTMIXER_ECODE_OK

0

Normal termination

OUTPUTMIXER_ECODE_COMMAND_ERROR

1

API execution error

2.1.8.2. Errors from SDK

Errors that occur inside the SDK are notified to the callback function registered with begin in the form of error notification result data.

Errors include [_Response Error] that occurs when there is a problem with the executed API and [_Attention Error] that occurs when an error is detected by internal processing.

In case of response error and attention error occurs, please add error handling and take corrective action according to each error.

2.1.9. Response Error

If the API executed in the Audio library controls different from the specifications such as status violation or parameter error, Response Error will occur and the error content will be call back with the parameter.

For the data format of Response Error, See Result Format and ErrorResponse.

"ErrorResponse" has "Error Code", and "Error Code" makes it possible to know what caused the error.

Below is a list of "Error Codes".

Table 8. Error Code List Table
Error Code Value Description

AS_ECODE_STATE_VIOLATION

0x01

State violation

AS_ECODE_PACKET_LENGTH_ERROR

0x02

Packet length mismatch

AS_ECODE_COMMAND_CODE_ERROR

0x03

Unknown command

AS_ECODE_COMMAND_NOT_SUPPOT

0x04

Invalid command

AS_ECODE_AUDIO_POWER_ON_ERROR

0x05

Power ON failure

AS_ECODE_AUDIO_POWER_OFF_ERROR

0x06

Power OFF failure

AS_ECODE_DSP_LOAD_ERROR

0x07

DSP startup failure

AS_ECODE_DSP_UNLOAD_ERROR

0x08

DSP termination failure

AS_ECODE_DSP_VERSION_ERROR

0x09

DSP version mismatch

AS_ECODE_SET_AUDIO_DATA_PATH_ERROR

0x0A

Input/output parameter error

AS_ECODE_CLEAR_AUDIO_DATA_PATH_ERROR

0x0B

Data path clear failure

AS_ECODE_NOT_AUDIO_DATA_PATH

0x0C

Input/output is disabled

AS_ECODE_DECODER_LIB_INITIALIZE_ERROR

0x0D

Decoder DSP initialization failure

AS_ECODE_ENCODER_LIB_INITIALIZE_ERROR

0x0E

Encoder DSP initialization failed

AS_ECODE_FILTER_LIB_INITIALIZE_ERROR

0x0F

Filter DSP initialization failed

AS_ECODE_COMMAND_PARAM_CODEC_TYPE

0x11

Incorrect codec type specification

AS_ECODE_COMMAND_PARAM_CHANNEL_NUMBER

0x13

Wrong number of channels specified

AS_ECODE_COMMAND_PARAM_SAMPLING_RATE

0x14

Incorrect sampling frequency

AS_ECODE_COMMAND_PARAM_BIT_RATE

0x15

Incorrect bit rate specification

AS_ECODE_COMMAND_PARAM_BIT_LENGTH

0x16

Incorrect bit length specification

[AS_ECODE_COMMAND_PARAM_COMPLEXITY]

0x17

Incorrect compression ratio specification

AS_ECODE_COMMAND_PARAM_ACTIVE_PLAYER

0x18

Incorrect specification of Player instance

AS_ECODE_COMMAND_PARAM_INPUT_DEVICE

0x19

Incorrect input device specification

AS_ECODE_COMMAND_PARAM_OUTPUT_DEVICE

0x1A

Incorrect output device specification

AS_ECODE_COMMAND_PARAM_INPUT_HANDLER

0x1B

Incorrect input device handle specification

AS_ECODE_COMMAND_PARAM_INPUT_DB

0x28

Incorrect mute parameter specification

AS_ECODE_DMAC_INITIALIZE_ERROR

0x2B

I/O function initialization failure

AS_ECODE_DMAC_READ_ERROR

0x2C

Input data acquisition failure

AS_ECODE_CHECK_MEMORY_POOL_ERROR

0x2E

Memory pool setting failure

AS_ECODE_SIMPLE_FIFO_UNDERFLOW

0x2F

Simple FIFO data is exhausted

AS_ECODE_SET_MIC_GAIN_ERROR

0x30

Incorrect microphone gain specification

AS_ECODE_SET_OUTPUT_SELECT_ERROR

0x32

Incorrect output destination setting

AS_ECODE_INIT_CLEAR_STEREO_ERROR

0x33

Incorrect clear stereo setting

AS_ECODE_SET_VOLUME_ERROR

0x34

Incorrect volume specification

AS_ECODE_SET_VOLUME_MUTE_ERROR

0x35

Incorrect mute target specification

AS_ECODE_SET_BEEP_ERROR

0x36

Incorrect beep parameter specification

AS_ECODE_QUEUE_OPERATION_ERROR

0x37

Data queue management failure

AS_ECODE_COMMAND_PARAM_RENDERINGCLK

0x39

Incorrect clock operation mode specification

AS_ECODE_SET_RENDERINGCLK_ERROR

0x3A

Clock operation mode setting failure

AS_ECODE_COMMAND_PARAM_SETSPDRVMODE

0x3B

Incorrect speaker drive capability setting

AS_ECODE_SET_MICMAP_ERROR

0x3D

Incorrect microphone setting

AS_ECODE_OBJECT_NOT_AVAILABLE_ERROR

0x3E

Used without generating the Object layer module

See here for more information on "Error Code".

2.1.10. Attention error

If any error is detected during processing (not command processing) inside the Audio SubSystem in SDK, a notification event will be send.

See ErrorAttention for the data format of Attention Error.

Attention Errors includes the system errors like flow control errors such as ES (Elementary Stream) supply error (underflow) during playback operation and ES write buffer overflow (overflow) during recording operation, memory resource exhaustion, and real-time process delay. And they includes fatal errors from HW and other that require a system reset to be recovered.

These errors can be determined by the "Attention Code" included "Error Attention".

Please make corrections based on "Attention Code". Also, changing the implementation method may improve the error.

Below is a list of "Attention Codes" that are included "ErrorAttention".

Table 9. Attention Code List Table
Attention Code Value Description

AS_ATTENTION_SUB_CODE_DMA_UNDERFLOW

0x01

DMA transfer underflow

AS_ATTENTION_SUB_CODE_DMA_OVERFLOW

0x02

DMA transfer overflow

AS_ATTENTION_SUB_CODE_DMA_ERROR

0x03

DMA transfer failure

AS_ATTENTION_SUB_CODE_SIMPLE_FIFO_UNDERFLOW

0x05

Underflow of SimpleFIFO

AS_ATTENTION_SUB_CODE_SIMPLE_FIFO_OVERFLOW

0x06

Overflow of SimpleFIFO

AS_ATTENTION_SUB_CODE_ILLEGAL_REQUEST

0x07

Illegal event reception

AS_ATTENTION_SUB_CODE_INTERNAL_STATE_ERROR

0x08

Internal status error

AS_ATTENTION_SUB_CODE_UNEXPECTED_PARAM

0x09

Internal parameter error

AS_ATTENTION_SUB_CODE_QUEUE_POP_ERROR

0x0A

Pop error for internal queue

AS_ATTENTION_SUB_CODE_QUEUE_PUSH_ERROR

0x0B

Push error for internal queue

AS_ATTENTION_SUB_CODE_QUEUE_MISSING_ERROR

0x0C

Internal queue exhaustion

AS_ATTENTION_SUB_CODE_MEMHANDLE_ALLOC_ERROR

0x0D

Memory handle acquisition failure

AS_ATTENTION_SUB_CODE_MEMHANDLE_FREE_ERROR

0x0E

Memory handle release failure

AS_ATTENTION_SUB_CODE_TASK_CREATE_ERROR

0x0F

Task creation failure

AS_ATTENTION_SUB_CODE_RESOURCE_ERROR

0x10

Failure to create or delete an instance

AS_ATTENTION_SUB_CODE_DSP_LOAD_ERROR

0x12

DSP startup failure

AS_ATTENTION_SUB_CODE_DSP_UNLOAD_ERROR

0x13

DSP termination failure

AS_ATTENTION_SUB_CODE_DSP_EXEC_ERROR

0x14

Error in DSP processing

AS_ATTENTION_SUB_CODE_DSP_ILLEGAL_REPLY

0x16

Invalid data received from DSP

AS_ATTENTION_SUB_CODE_DSP_VERSION_ERROR

0x18

DSP version mismatch

AS_ATTENTION_SUB_CODE_BASEBAND_ERROR

0x19

Error in audio driver

AS_ATTENTION_SUB_CODE_STREAM_PARSER_ERROR

0x1A

ES data analysis error

AS_ATTENTION_SUB_CODE_DSP_LOG_ALLOC_ERROR

0x1E

Acquisition failure of DSP log buffer

AS_ATTENTION_SUB_CODE_DSP_ASSETION_FAIL

0x1F

Fatal error in DSP processing

AS_ATTENTION_SUB_CODE_DSP_SEND_ERROR

0x20

Command transmission error to DSP

Please refer to here for details of "Attention Code".

Attention Level

A level of importance is specified for the attention notification, and the processing method for recovery is dependent on the severity of the error.

Table 10. Attention Level
Level value Description

FATAL

0x03

A system call error, etc. that is not recoverable and requires a reset to restore.

ERROR

0x02

It is an error in the operation of which the audio system can not continued with the internal error (queue Full / Empty, DSP load / unload etc). It is possible to recover by returning the system to the initial state (Ready state).

WARN

0x01

There is a possibility that the operation is abnormal, such as encode / decode error, data underflow / overflow, etc. There is a possibility that abnormality has occurred in voice data, etc., but operation can continue.

2.1.11. Error Code List

Below is a list of "Error Code" added to "Error Response".

2.1.11.1. AS_ECODE_STATE_VIOLATION
code

0x01

description

A status violation has occurred in Audio Sub System.
Since the requested command does not match the state in AudioSubSystem, it can not accept the command.
Please make a transition to the correct state with a command to change the state and then re-send the command.

For the state transition in AudioSubSystem see below.

state transition

2.1.11.2. AS_ECODE_PACKET_LENGTH_ERROR
code

0x02

description

The packet length parameter of the command packet is incorrect.
The packet length is specified in units of Word (4 bytes). It is not a byte unit.
Make sure that the correct value is set.

2.1.11.3. AS_ECODE_COMMAND_CODE_ERROR
code

0x03

description

An unknown command was received.
Check the command ID.

2.1.11.4. AS_ECODE_COMMAND_NOT_SUPPOT
code

0x04

description

The command you sent is not valid.
In order to use the command, it is necessary to enable the corresponding function in the configuration.

For details on configuring Audio Player and Audio Recorder, refer to the following.

Audio Player
Audio Recorder

2.1.11.5. AS_ECODE_AUDIO_POWER_ON_ERROR
code

0x05

description

The Audio power supply can not be turned on. There is a possibility that the power is already on.

2.1.11.6. AS_ECODE_AUDIO_POWER_OFF_ERROR
code

0x06

description

The Audio power can not be turned off. There is a possibility that the power has already been turned off.

2.1.11.7. AS_ECODE_DSP_LOAD_ERROR
code

0x07

description

Can not load / start the DSP.

Make sure that the path to the DSP file is set correctly.
Please refer to the following for setting the path.

AudioPlayer [Player initialization]
AudioRecorder [Init recorder information]

Also, there is a possibility that the required DSP is not placed in the defined path.
AudioPlayer requires MP3DEC, WAVDEC (depending on the type of playback file).
AudioRecorder requires MP3ENC, SRC (depending on recording file type).
These are located in sdk/modules/audio/dsp/ .

2.1.11.8. AS_ECODE_DSP_UNLOAD_ERROR
code

0x08

description

DSP can not be terminated / unloaded.
It may already be unloaded or may not have been loaded.

2.1.11.9. AS_ECODE_DSP_VERSION_ERROR
code

0x09

description

The version of DSP is different from what AudioSubStyle expects and can not be used.
Please use the DSP sdk/modules/audio/dsp/ that is included in the SDK package you are using.

2.1.11.10. AS_ECODE_SET_AUDIO_DATA_PATH_ERROR
code

0x0a

description

Path setting (input / output) of Audio data is wrong.
Please confirm that the following parameters are correctly set.

AudioRecorder is [Init recorder information]
BaseBand is SetBaseBandStatusParam
Through mode is AsSetThroughPathParam

2.1.11.11. AS_ECODE_CLEAR_AUDIO_DATA_PATH_ERROR
code

0x0b

description

Audio data path setting can not be cleared.

2.1.11.12. AS_ECODE_NOT_AUDIO_DATA_PATH
code

0x0c

description

The input device or output device is not enabled.
It is necessary to transition to BaseBandStatus or ThroughStatus.

The transition to BasebandStatus is SetBasebandStatus
The transition to ThroughStatus is SetThroughStatus

2.1.11.13. AS_ECODE_DECODER_LIB_INITIALIZE_ERROR
code

0x0d

description

Initialization error is being reported from Decoder DSP.

2.1.11.14. AS_ECODE_ENCODER_LIB_INITIALIZE_ERROR
code

0x0e

description

An initialization error is being reported from the Encoder DSP.

2.1.11.15. AS_ECODE_FILTER_LIB_INITIALIZE_ERROR
code

0x0f

description

Initialization error is being reported from Filter DSP. .

2.1.11.16. AS_ECODE_COMMAND_PARAM_CODEC_TYPE
code

0x11

description

The type of the specified Audio Codec is incorrect.

For the codec supported by AudioSubSystem, refer to the following.

AudioPlayer [Player initialization]
AudioRecorder [Init recorder information]

2.1.11.17. AS_ECODE_COMMAND_PARAM_CHANNEL_NUMBER
code

0x13

description

The specified number of channels is incorrect, or an error occurs in combination with other parameters.
Both AudioPlayer and AudioRecorder have limitations on combination of allowed parameters such as Codec type and number of channels.

For details of each restriction, please refer to the following.

AudioPlayer [Player initialization]
AudioRecorder [Init recorder information]

2.1.11.18. AS_ECODE_COMMAND_PARAM_SAMPLING_RATE
code

0x14

description

The specified sampling frequency is incorrect, or an error occurs in combination with other parameters.
Both AudioPlayer and AudioRecorder have limitations on combination of allowed parameters such as Codec type and sampling frequency.

In the case of the AudioPlayer, information on the sampling frequency included in the header of the audio data and this error also occurs if the specified sampling frequency is different.

For details of each restriction, please refer to the following.

2.1.11.19. AS_ECODE_COMMAND_PARAM_BIT_RATE
code

0x15

description

The specified bit rate is incorrect, or an error occurs in combination with other parameters.
AudioRecorder has limitations on combinations of allowed parameters such as Codec type and bit rate.

Please refer to the following for details of restriction.

[Init recorder information]

2.1.11.20. AS_ECODE_COMMAND_PARAM_BIT_LENGTH
code

0x16

description

The specified bit length is incorrect, or an error occurs in combination with other parameters.

For details of each restriction, please refer to the following.

AudioPlayer [Player initialization]
AudioRecorder [Init recorder information]

Also, if you specify 24 bits for bit length, you need to switch to HiReso mode.

For details on switching modes, see Init Rendering Clock.

2.1.11.21. AS_ECODE_COMMAND_PARAM_ACTIVE_PLAYER
code

0x18

description

Invalid Player specification is enabled.
It can not transit to Player state.

For the parameters, please refer to the following.

[Change to Player Status]

2.1.11.22. AS_ECODE_COMMAND_PARAM_INPUT_DEVICE
code

0x19

description

The specified input device is incorrect.

For the parameters, please refer to the following.

[Change to Player Status]
[Change to Recorder Status]

2.1.11.23. AS_ECODE_COMMAND_PARAM_OUTPUT_DEVICE
code

0x1A

description

The specified output device is incorrect.

For the parameters, please refer to the following.

[Change to Player Status]
[Change to Recorder Status]

2.1.11.24. AS_ECODE_COMMAND_PARAM_INPUT_HANDLER
code

0x1B

description

The specified input device handle is incorrect.
Make sure that Handle and callback function of SimpleFIFO are set correctly.

For the parameters, please refer to the following.

[Change to Player Status]

2.1.11.25. AS_ECODE_COMMAND_PARAM_CONFIG_TABLE
code

0x1F

description

The coefficient table address of the MFE or MPP filter is incorrect.

2.1.11.26. AS_ECODE_COMMAND_PARAM_WITH_MFE
code

0x20

description

The activation specification parameter of MFE is incorrect.
In the first place it is possible that an incorrect value is set or MFE is disabled even though the VoiceCommand is valid.
(* MFE must also be enabled whenever you activate VoiceCommand.)

For the parameters, please refer to the following.

Set Baseband Status

2.1.11.27. AS_ECODE_COMMAND_PARAM_WITH_MPP
code

0x21

description

The parameter to activate MPP is invalid. (MPP is not supported yet.)

2.1.11.28. AS_ECODE_COMMAND_PARAM_INPUT_DB
cod

0x28

description

The mute specification parameter is incorrect.

For the parameters, please refer to the following.
Set Volume Mute

2.1.11.29. AS_ECODE_DMAC_INITIALIZE_ERROR
code

0x2B

description

Failed to initialize voice capture / rendering.

2.1.11.30. AS_ECODE_DMAC_READ_ERROR
code

0x2C

description

Audio data acquisition failed.

2.1.11.31. AS_ECODE_CHECK_MEMORY_POOL_ERROR
code

0x2E

description

MemoryPool check error occurred during Object Create in AudioSubSystem.
It is possible that the memory pool ID is not passed to the Create API correctly or the MemoryPool is created incorrectly.

Please refer here for specification of memory pool ID.

Create Media Player
Create Media Recorder

For details on creating MemoryPool, please refer to here.

AudioPlayer PoolAreas

2.1.11.32. AS_ECODE_SIMPLE_FIFO_UNDERFLOW
code

0x2F

description

At the start of Audio playback, the Simple FIFO used as the ES buffer underflows.
When starting playback, AudioSubSystem immediately extracts ES data from SimpleFIFO and starts decoding. So in the application, it is necessary to put ES data in the FIFO before playback starts.

Diagram
2.1.11.33. AS_ECODE_SET_MIC_GAIN_ERROR
code

0x30

description

The microphone input gain setting value is wrong.
The setting range is different between the analog microphone and the digital microphone.

For the parameters, please refer to the following.
Initialize Mic Gain

2.1.11.34. AS_ECODE_SET_OUTPUT_SELECT_ERROR
code

0x32

description

The specified output destination setting is incorrect.

InitOutputSelect

2.1.11.35. AS_ECODE_INIT_CLEAR_STEREO_ERROR
code

0x33

description

Clear Stereo setting error occurred.

2.1.11.36. AS_ECODE_SET_VOLUME_ERROR
code

0x34

description

The specified playback volume is incorrect.
Volume setting value is limited. For details of the parameters, refer to the following.

Set Volume

2.1.11.37. AS_ECODE_SET_VOLUME_MUTE_ERROR
code

0x35

description

Volume setting to AudioDriver failed.

2.1.11.38. AS_ECODE_SET_BEEP_ERROR
code

0x36

description

The specified beep parameters are incorrect.
The volume / frequency setting value range has limits. For details of the parameters, refer to the following.

2.1.11.39. AS_ECODE_QUEUE_OPERATION_ERROR
code

0x37

description

AudioSubSystem internal queue operation (push, pop) error occurred.

2.1.11.40. AS_ECODE_COMMAND_PARAM_RENDERINGCLK
code

0x39

description

Parameter error in HiReso mode setting.
For the parameters that can be set, refer to the following.

SetRenderingClock

2.1.11.41. AS_ECODE_SET_RENDERINGCLK_ERROR
code

0x3A

description

HiReso mode setting error.
In order to use the HiReso mode, it is necessary to set the audio clock to 49.152 Mhz in the configuration.

cd sdk
tools/config.py -m
[CXD56xx Configuration]
  [Audio]
    [Audio baseband config settings]
      [CXD5247 settings]
        [X'tal frequency of the CXD5247] <- 49.152Mhz
2.1.11.42. AS_ECODE_COMMAND_PARAM_SETSPDRVMODE
code

0x3B

description

The speaker drive capacity is specified incorrectly.

To set up the parameters, refer to the following.

SetSpDrv

2.1.11.43. AS_ECODE_SET_MICMAP_ERROR
code

0x3D

description

The microphone selection is incorrect.

To set up the parameters, refer to the following.

SetMicMap

2.1.11.44. AS_ECODE_OBJECT_NOT_AVAILABLE_ERROR
code

0x3E

description

You will be notified if you use that object without creating an Object layer module.
In each Object, check if there is an Object that is called without calling Create.

2.1.12. Attention Code List

Below is a list of "Attention Code" added to "ErrorAttention".

2.1.12.1. AS_ATTENTION_SUB_CODE_DMA_UNDERFLOW
Code

0x01

Attention Level

ERROR

Description

DMA transfer underflow occurred.
The transfer request to DMA may be slower than the data transfer speed of DMA. Or the DMA transfer may be stopped.
The transfer speed of DMA is 48000 samples / second in the normal mode and 192000 samples / second in the HiReso mode.

Error Handling

If this error occurs, application task processing may have priority over real-time processing.
Please review the priority of each task.

2.1.12.2. AS_ATTENTION_SUB_CODE_DMA_OVERFLOW
Code

0x02

Attention Level

ERROR

Description

DMA transfer overflow occurred.
The transfer request to DMA may be faster than the data transfer speed of DMA. Or DMA transfer may not be started.

The transfer speed of DMA is 48000 samples / second in the normal mode and 192000 samples / second in the HiReso mode.

Error Handling

In the case of recording operation, the master clock of Audio supplied by HW may be stopped. Is the clock supplied correctly? Please Confirm. If it occurs during playback operation, check that the correct clock is being sent.

2.1.12.3. AS_ATTENTION_SUB_CODE_DMA_ERROR
Code

0x03

Attention Level

FATAL, ERROR

Description

An error is being responded from the DMA hardware.
It may have requested transfer start before sending a transfer request to DMA.

Error Handling

It is an error that can not normally occur.
Please contact SDK development member if this error occurs.

2.1.12.4. AS_ATTENTION_SUB_CODE_SIMPLE_FIFO_UNDERFLOW
Code

0x05

Attention Level

WARNING

Description

Simple FIFO underflow occurred during AudioPlayer operation.
Simple FIFO is used as a buffer to pass ES data from Application to AudioSubSystem.
The application can not keep up with the data extraction speed of AudioSubSystem.

Error Handling

Adjust the task priority so that buffer supply from the application can be made fast enough.
Please increase the buffer size so that data input can be made in time.

2.1.12.5. AS_ATTENTION_SUB_CODE_SIMPLE_FIFO_OVERFLOW
Code

0x06

Attention Level

WARNING

Description

An overflow of SimpleFIFO occurred while AudioRecorder was running.
Simple FIFO is used to buffer EncodedES data from AudioSubSystem to application.
The application does not follow the data input speed of AudioSubSystem.+

Error Handling

Adjust the task priority so that application buffer data extraction can be made in time.
Please increase the buffer size so that data extraction can be made in time.

2.1.12.6. AS_ATTENTION_SUB_CODE_ILLEGAL_REQUEST
Code

0x07

Attention Level

ERROR

Description

An illegal event was received inside AudioSubSystem.
There is a possibility that the control sequence is abnormal.

Error Handling

It is an error that can not normally occur.
Please contact SDK development member if this error occurs.

2.1.12.7. AS_ATTENTION_SUB_CODE_INTERNAL_STATE_ERROR
Code

0x08

Attention Level

ERROR

Description

Status error in MediaPlayer.

Error Handling

It is an error that can not normally occur.
Please contact SDK development member if this error occurs.

2.1.12.8. AS_ATTENTION_SUB_CODE_UNEXPECTED_PARAM
Code

0x09

Attention Level

ERROR

Description

The command parameter is incorrectly.

Error Handling

Check the command parameters.

2.1.12.9. AS_ATTENTION_SUB_CODE_QUEUE_POP_ERROR
Code

0x0A

Attention Level

ERROR

Description

An internal queue POP error has occurred.

Error Handling

It is an error that can not normally occur.
Please contact SDK development member if this error occurs.

2.1.12.10. AS_ATTENTION_SUB_CODE_QUEUE_PUSH_ERROR
Code

0x0B

Attention Level

ERROR

Description

An internal queue PUSH error has occurred.

Error Handling

It is an error that can not normally occur.
Please contact SDK development member if this error occurs.

2.1.12.11. AS_ATTENTION_SUB_CODE_QUEUE_MISSING_ERROR
Code

0x0C

Attention Level

ERROR

Description

The internal queue is unintentionally empty.

Error Handling

It is an error that can not normally occur.
Please contact SDK development member if this error occurs.

2.1.12.12. AS_ATTENTION_SUB_CODE_MEMHANDLE_ALLOC_ERROR
Code

0x0D

Attention Level

ERROR

Description

Acquisition of memory handle failed.
All memory handles are in use or the handle ID is incorrect.

Error Handling

If the number of memory handle steps is insufficient, please review the memory pool setting.
Please refer to the following for the setting method. (An example of AudioPlayer setting)

Player MemoryPool overview
Player MemoyPool definitions

2.1.12.13. AS_ATTENTION_SUB_CODE_MEMHANDLE_FREE_ERROR
Code

0x0E

Attention Level

ERROR

Description

Failed to release memory handle.
The handle you tried to release may have already been released.

Error Handling

It is an error that can not normally occur.
Please contact SDK development member if this error occurs.

2.1.12.14. AS_ATTENTION_SUB_CODE_TASK_CREATE_ERROR
Code

0x0F

Attention Level

ERROR

Description

Failed to generate a task to be used inside AudioSubSystem.
There is a possibility that the number of task generation in the whole system has reached the upper limit.

Error Handling

Increase the task creation suck limit or reduce the tasks used in the application.

To increase the upper limit of the task generation number, you can set it by config.

cd sdk
cd tools/config.py -k -m
[RTOS Features]
  [Tasks and Scheduling]
    [Max number of tasks] <- Set this.
2.1.12.15. AS_ATTENTION_SUB_CODE_RESOURCE_ERROR
Code

0x10

Attention Level

ERROR

Description

Failed to create / delete instances used within AudioSubSystem.
It is possible that you called the Create API, Delete API of Object / Component twice.
Or the heap area may be short.

Error Handling

It is an error that can not normally occur.
Please contact SDK development member if this error occurs.

2.1.12.16. AS_ATTENTION_SUB_CODE_DSP_LOAD_ERROR
Code

0x12

Attention Level

ERROR

Description

Failed to load DSP binary.
The DSP binary file may not be in the specified folder path.

Error Handling

Check the existence of file or check the specification of folder path.
For details on specifying the folder path, refer to the following.

AudioPlayer [Player initialization]
AudioRecorder [Init recorder information]

2.1.12.17. AS_ATTENTION_SUB_CODE_DSP_UNLOAD_ERROR
Code

0x13

Attention Level

ERROR

Description

DSP unload failed. It may already be unloaded or may not have been loaded at all.

Error Handling

It is an error that can not normally occur.
Please contact SDK development member if this error occurs.

2.1.12.18. AS_ATTENTION_SUB_CODE_DSP_EXEC_ERROR
Code

0x14

Attention Level

ERROR, WARNING

Description

An error occurred during execution of processing in the DSP.
Although it does not immediately affect the operation of AudioSubSystem
the result of the decoding / encoding / filter may not be normal.
(There is a possibility that the sound is temporarily distorted, the data drops out, etc.)

Error Handling

In playback operation, the audio data may be corrupted.
Please check the audio data.

2.1.12.19. AS_ATTENTION_SUB_CODE_DSP_ILLEGAL_REPLY
code

0x16

Attention Level

ERROR

Description

A response command packet from the DSP is corrupted.

Error Handling

It is an error that can not normally occur.
Please contact SDK development member if this error occurs.

2.1.12.20. AS_ATTENTION_SUB_CODE_DSP_VERSION_ERROR
Code

0x18

Attention Level

ERROR

Description

A DSP version error occurred. Can not load DSP.

Error Handling

Please use the DSP binary packed in the SDK.
The DSP binary is in sdk/modules/audio/dsp .

2.1.12.21. AS_ATTENTION_SUB_CODE_BASEBAND_ERROR
Code

0x19

Attention Level

ERROR

Description

A register setting error occurred in Audio Driver.

Error Handling

It is an error that can not normally occur.
Please contact SDK development member if this error occurs.

2.1.12.22. AS_ATTENTION_SUB_CODE_STREAM_PARSER_ERROR
Code

0x1A

Attention Level

ERROR

Description

ES data analysis error occurred in AudioPlayer.
[Player initialization] parameters and ES data analysis results are different.

Error Handling

Please check whether ES data passed to AudioSubSystem is wrong or corrupted.

2.1.12.23. AS_ATTENTION_SUB_CODE_DSP_LOG_ALLOC_ERROR
Code

0x1E

Attention Level

ERROR

Description

Failed to acquire DSP log buffer.
When multiple DSPs are in use, there is a possibility that the remaining capacity of the log buffer area is insufficient.

Error Handling

The buffer area for DSP log can not be set from application or config.

However, if the DSP log is unnecessary, you can turn off the logging function itself by config.

cd sdk
cd tools/config.py -k -m
[Audio Utilities]
  [Audio component menu]
    [dsp debug dump] <- Set to "No".
2.1.12.24. AS_ATTENTION_SUB_CODE_DSP_ASSETION_FAIL
Code

0x1F

Attention Level

ERROR

Description

An error occurs inside the DSP and it is impossible to continue processing.

Error Handling

The system reset is necessary for recovery.

2.1.12.25. AS_ATTENTION_SUB_CODE_DSP_SEND_ERROR
Code

0x20

Attention Level

ERROR

Description

Failed to send the command to DSP.

Error Handling

It is an error that can not normally occur.
There may be a problem inside the SDK.

2.1.13. Module ID List

AudioSubSystem ID list of modules to be used internally.
It is notified with Attention callback along with attention code, and it judges which module caused an error.

Table 11. Module ID List Table
Module ID Value Description

AS_MODULE_ID_AUDIO_MANAGER

0

Audio Manager

AS_MODULE_ID_AUDIO_DRIVER

1

Audio Baseband Driver

AS_MODULE_ID_MIC_FRONTEND_OBJ

2

FrontEnd Object

AS_MODULE_ID_INPUT_DATA_MNG_OBJ

3

Input Data Manager Object

AS_MODULE_ID_MEDIA_RECORDER_OBJ

4

Media Recorder Object

AS_MODULE_ID_OUTPUT_MIX_OBJ

5

Output Mix Object

AS_MODULE_ID_PLAYER_OBJ

6

Player Object

AS_MODULE_ID_RECOGNITION_OBJ

7

Recognition Object

AS_MODULE_ID_SOUND_EFFECT_OBJ

8

Sound Effect Object

AS_MODULE_ID_SYNTHESIZER_OBJ

9

Synthesizer Object

AS_MODULE_ID_CAPTURE_CMP

10

Capture Component

AS_MODULE_ID_DECODER_CMP

11

Decoder Component

AS_MODULE_ID_ENCODER_CMP

12

Encoder Component

AS_MODULE_ID_FILTER_CMP

13

Filter Component

AS_MODULE_ID_RECOGNITION_CMP

14

Recognition Component

AS_MODULE_ID_RENDERER_CMP

15

Renderer Component

AS_MODULE_ID_POSTPROC_CMP

16

Postfilter Component

AS_MODULE_ID_OSCILLATOR_CMP

17

Oscillator Component

AS_MODULE_ID_CUSTOM_CMP

18

Custom Component


2.2. Camera Library

This section explains how to use Camera library of Spresense Arduino Library.

2.2.1. Overview

The Spresense camera library overview is shown as below:

arduino camera overview
Figure 5. Camera Overview

In Spresense Arduino Library Camera, there are two classes.

One is "theCamera" which is an instance of CameraClass, and the other is CamImage class which is manipulate image from theCamera.

"theCamera" has three major functions:

  • Video Stream function to get Camera preview image

  • Setting function to set camera parameters

  • Capture picture function to get high-resolution JPEG image.

CamImage class is for manipulating an image. The below figure is the overview of the CamImage.

arduino camera camimage
Figure 6. CamImage Overview

CamImage class has two major functions:

  • To get information of an image from theCamera class

  • To convert image

Please find the description of supported functions in the next sections.

2.2.2. Video Stream function to get Camera preview image

The viewfinder of a camera shows real-time images shown on a camera.

This real-time image (real-time movie) is called Preview image. "theCamera" has a function to acquire this Preview image frame by frame.

To obtain the Preview image, first determine the image format of the Preview image using the begin() method function. The definition of the begin() method function is as follows.

begin(
    int buff_num=1,
    CAM_VIDEO_FPS fps = CAM_VIDEO_FPS_30,
    int video_width   = CAM_IMGSIZE_QVGA_H,
    int video_height  = CAM_IMGSIZE_QVGA_V,
    CAM_IMAGE_PIX_FMT fmt=CAM_IMAGE_PIX_FMT_YUV422,
    int jpgbufsize_divisor = 7)

All the parameters given to begin() method function determine the parameters of the Preview image. The parameters and the default values are as follow : Number of preview image buffers inside theCamera = 1 Vertical and horizontal size of the image = QVGA (320 x 240) Frame rate of Video (how many frames to acquire per second) = 30 FPS (30 images per second) Image data pixel format = YUV 422

As for the number of internal image buffers, it would be sufficient if you use the default value of 1.

In cases you need to do heavy processing, for example when you are processing large number of images. You need to increase the number of image buffers to be able to do parallel image processing and image acquisition. In such case, by setting the number of internal image buffers to 2, you can perform parallel image processing from the camera while the image frame rate is improved in some cases as a result. This process will consume about 150 KB of buffer memory with QVGA, so please be careful when setting a large number of sheets.

The supported pixel formats for the preview image are YUV422, RGB565 and JPEG. The available frame sizes and frame intervals are the same as SDK. Please refer to Settings available in ISX012 or Settings available in ISX019

The begin() method function is the first function to call when using theCamera. When the begin() method function is completed successfully, register the callback function to obtain the Preview image using the startStreaming() method function. The callback function is as follows:

void camera_callback(CamImage img)

The user implements its own function of this type and registers it by using the startStreaming() method function. When "true" is specified as the first argument of startStreaming(), acquisition of the video image for Preview is started, and the registered callback function is called each time the image is acquired. The frequency of acquiring images is determined by the frame rate specified by the begin() method function. The callback function of the next frame will not be called unless the callback function implemented by the user is terminated. To stop the acquisition of the Preview image, call the startStreaming() method function with the first argument of the startStreaming() method function set to false.

2.2.3. Setting function to set Camera parameters

Spresense Camera, the same as any other camera, can set various settings such as color adjustment and brightness.

Table 12. Camera Parameter Control method functions
Method name Description

setAutoWhiteBalance()

Start and stop automatic white balance of Camera

setAutoWhiteBalanceMode()

Mode setting at automatic white balance

setAutoExposure()

Start and stop automatic exposure of Camera

setAbsoluteExposure()

Set camera exposure time in 100 microseconds unit

setAutoISOSensitivity()

Start and stop automatic ISO sensitivity of Camera

setISOSensitivity()

Set ISO sensitivity setting with manual ISO sensitivity setting

setColorEffect()

Set image effect

setHDR()

Set HDR mode

setJPEGQuality()

Set JPEG quality

There are also parameters that can get the current value using the following APIs.

Table 13. Camera Parameter Getting method functions
Method name Description

getAbsoluteExposure()

Get camera exposure time in 100 microseconds unit

getISOSensitivity()

Get camera ISO sensitivity

getHDR()

Get HDR mode

getJPEGQuality()

Get JPEG quality

These method functions can be called at any time after calling the begin() method function.

2.2.4. Capture picture function to get high-resolution JPEG image.

Preview images are low resolution, you can get images with frequency of frame rate as movies. On the other hand, when acquiring data as a photograph, the Spresense Camera can acquire high-resolution JPEG compressed images.

First of all, we will process "to set the film" on theCamera. The method function that does this is setStillPictureImageFormat(). Use this method function to set the image size and pixel format for still images (photographs).

setStillPictureImageFormat(
    int width,
    int height,
    CAM_IMAGE_PIX_FMT fmt = CAM_IMAGE_PIX_FMT_JPEG,
    int jpgbufsize_divisor = 7)

Specify the horizontal and vertical size of the image with the first and second arguments. The third argument specifies the pixel format of the image.

If the setStillPictureImageFormat () method function is set once, the setting is permanently effective unless the parameter is changed.

The supported pixel formats are YUV422, RGB565 and JPEG. The available frame sizes and frame intervals are the same as SDK. Please refer to Settings available in ISX012 or Settings available in ISX019

After setting the image, at the arbitrary timing, do "push the shutter" process and get the photo data. The method function for that will be takePicture(), which returns an instance of CamImage as a return value. If an error occurs during photography, it returns an empty CamImage. To determine whether an instance of CamImage is empty, you can check it with isAvailable() of CamImage class.

If the acquisition of CamImage fails in JPEG cases, it is possible that the capacity of the JPEG buffer size set by setStillPictureImageFormat () is insufficient. You can increase the JPEG buffer size by reducing the value of the function parameter jpgbufsize_divisor. Also, if the overall memory capacity is insufficient and the buffer size cannot be obtained, it may be possible to solve it by expanding the memory used by the MainCore application. See Arduino memory size configuration for more information.

2.2.5. To get informations of an Image from theCamera

The CamImage instance, obtained by callback with startStreaming() or by the return value of takePicture(), contains information on the acquired image. Image information can be obtained using the method function of the CamImage class.

Table 14. Methods to get Informations from CamImage
Method name Description

isAvailable()

Check availability of this CamImage instance

getWidth()

Get image width in pixels

getHeight()

Get height of image in pixels

getPixFormat()

Get pixel format of image

getImgSize()

Get size of image data in bytes

getImgBuff()

Get buffer address of image data

getImgBuffSize()

Get image buffer size in bytes

2.2.6. To convert image

CamImage instances have one image transformation method function.

Table 15. Methods to convert CamImage
Method name Description

convertPixFormat()

Convert the image from the current pixel format to another pixel format

resizeImageByHW()

Resize image

clipAndResizeImageByHW()

Clip and resize image

When you want images to appear on the display, the display’s pixel format is RGB format usually. If your pixel format is different than RGB, use the convertPixFormat() method function to convert pixel format of your image to RGB.

convertPixFormat() converts its own pixel format and overwrites own image data.

Currently, there are the following restrictions. - convertPixformat() supports only two conversion one is from YUV422 to RGB and the other is YUV422 to GRAY. - About the resize ratio of resizeImageByHW() and clipAndResizeImageByHWi, support only power of 2(from 2^(-6) to 2^(6)).

2.2.7. Explanation by sample code

This section explains how to use the Spresense camera, using the sample code of Camera included in the Spresense Arduino Package.

You can open the sample code from Arduino IDE’s menu bar.

"File" ⇒ "Sketch example" ⇒ "Camera in Spresense sketch example" ⇒ "camera"

/*
 *  camera.ino - Simple camera example sketch
 *  Copyright 2018, 2022 Sony Semiconductor Solutions Corporation
 *
 *  This library is free software; you can redistribute it and/or
 *  modify it under the terms of the GNU Lesser General Public
 *  License as published by the Free Software Foundation; either
 *  version 2.1 of the License, or (at your option) any later version.
 *
 *  This library is distributed in the hope that it will be useful,
 *  but WITHOUT ANY WARRANTY; without even the implied warranty of
 *  MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the GNU
 *  Lesser General Public License for more details.
 *
 *  You should have received a copy of the GNU Lesser General Public
 *  License along with this library; if not, write to the Free Software
 *  Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA  02110-1301  USA
 *
 *  This is a test app for the camera library.
 *  This library can only be used on the Spresense with the FCBGA chip package.
 */

#include <SDHCI.h>
#include <stdio.h>  /* for sprintf */

#include <Camera.h>

#define BAUDRATE                (115200)
#define TOTAL_PICTURE_COUNT     (10)

SDClass  theSD;
int take_picture_count = 0;

/**
 * Print error message
 */

void printError(enum CamErr err)
{
  Serial.print("Error: ");
  switch (err)
    {
      case CAM_ERR_NO_DEVICE:
        Serial.println("No Device");
        break;
      case CAM_ERR_ILLEGAL_DEVERR:
        Serial.println("Illegal device error");
        break;
      case CAM_ERR_ALREADY_INITIALIZED:
        Serial.println("Already initialized");
        break;
      case CAM_ERR_NOT_INITIALIZED:
        Serial.println("Not initialized");
        break;
      case CAM_ERR_NOT_STILL_INITIALIZED:
        Serial.println("Still picture not initialized");
        break;
      case CAM_ERR_CANT_CREATE_THREAD:
        Serial.println("Failed to create thread");
        break;
      case CAM_ERR_INVALID_PARAM:
        Serial.println("Invalid parameter");
        break;
      case CAM_ERR_NO_MEMORY:
        Serial.println("No memory");
        break;
      case CAM_ERR_USR_INUSED:
        Serial.println("Buffer already in use");
        break;
      case CAM_ERR_NOT_PERMITTED:
        Serial.println("Operation not permitted");
        break;
      default:
        break;
    }
}

/**
 * Callback from Camera library when video frame is captured.
 */

void CamCB(CamImage img)
{

  /* Check the img instance is available or not. */

  if (img.isAvailable())
    {

      /* If you want RGB565 data, convert image data format to RGB565 */

      img.convertPixFormat(CAM_IMAGE_PIX_FMT_RGB565);

      /* You can use image data directly by using getImgSize() and getImgBuff().
       * for displaying image to a display, etc. */

      Serial.print("Image data size = ");
      Serial.print(img.getImgSize(), DEC);
      Serial.print(" , ");

      Serial.print("buff addr = ");
      Serial.print((unsigned long)img.getImgBuff(), HEX);
      Serial.println("");
    }
  else
    {
      Serial.println("Failed to get video stream image");
    }
}

/**
 * @brief Initialize camera
 */
void setup()
{
  CamErr err;

  /* Open serial communications and wait for port to open */

  Serial.begin(BAUDRATE);
  while (!Serial)
    {
      ; /* wait for serial port to connect. Needed for native USB port only */
    }

  /* Initialize SD */
  while (!theSD.begin())
    {
      /* wait until SD card is mounted. */
      Serial.println("Insert SD card.");
    }

  /* begin() without parameters means that
   * number of buffers = 1, 30FPS, QVGA, YUV 4:2:2 format */

  Serial.println("Prepare camera");
  err = theCamera.begin();
  if (err != CAM_ERR_SUCCESS)
    {
      printError(err);
    }

  /* Start video stream.
   * If received video stream data from camera device,
   *  camera library call CamCB.
   */

  Serial.println("Start streaming");
  err = theCamera.startStreaming(true, CamCB);
  if (err != CAM_ERR_SUCCESS)
    {
      printError(err);
    }

  /* Auto white balance configuration */

  Serial.println("Set Auto white balance parameter");
  err = theCamera.setAutoWhiteBalanceMode(CAM_WHITE_BALANCE_DAYLIGHT);
  if (err != CAM_ERR_SUCCESS)
    {
      printError(err);
    }

  /* Set parameters about still picture.
   * In the following case, QUADVGA and JPEG.
   */

  Serial.println("Set still picture format");
  err = theCamera.setStillPictureImageFormat(
     CAM_IMGSIZE_QUADVGA_H,
     CAM_IMGSIZE_QUADVGA_V,
     CAM_IMAGE_PIX_FMT_JPG);
  if (err != CAM_ERR_SUCCESS)
    {
      printError(err);
    }
}

/**
 * @brief Take picture with format JPEG per second
 */

void loop()
{
  sleep(1); /* wait for one second to take still picture. */

  /* You can change the format of still picture at here also, if you want. */

  /* theCamera.setStillPictureImageFormat(
   *   CAM_IMGSIZE_HD_H,
   *   CAM_IMGSIZE_HD_V,
   *   CAM_IMAGE_PIX_FMT_JPG);
   */

  /* This sample code can take pictures in every one second from starting. */

  if (take_picture_count < TOTAL_PICTURE_COUNT)
    {

      /* Take still picture.
      * Unlike video stream(startStreaming) , this API wait to receive image data
      *  from camera device.
      */

      Serial.println("call takePicture()");
      CamImage img = theCamera.takePicture();

      /* Check availability of the img instance. */
      /* If any errors occur, the img is not available. */

      if (img.isAvailable())
        {
          /* Create file name */

          char filename[16] = {0};
          sprintf(filename, "PICT%03d.JPG", take_picture_count);

          Serial.print("Save taken picture as ");
          Serial.print(filename);
          Serial.println("");

          /* Remove the old file with the same file name as new created file,
           * and create new file.
           */

          theSD.remove(filename);
          File myFile = theSD.open(filename, FILE_WRITE);
          myFile.write(img.getImgBuff(), img.getImgSize());
          myFile.close();
        }
      else
        {
          /* The size of a picture may exceed the allocated memory size.
           * Then, allocate the larger memory size and/or decrease the size of a picture.
           * [How to allocate the larger memory]
           * - Decrease jpgbufsize_divisor specified by setStillPictureImageFormat()
           * - Increase the Memory size from Arduino IDE tools Menu
           * [How to decrease the size of a picture]
           * - Decrease the JPEG quality by setJPEGQuality()
           */

          Serial.println("Failed to take picture");
        }
    }
  else if (take_picture_count == TOTAL_PICTURE_COUNT)
    {
      Serial.println("End.");
      theCamera.end();
    }

  take_picture_count++;
}

For this sample please do the setup as follow: - Set the Preview image to QVGA - Set the frame rate to 30 FPS, to acquire 30 frames of data - take a JPEG picture and save it to SDCard.

After doing the setup, please follow these steps: "initial setting", "error print", "setup()", "preview callback" and "loop()".

Please find the description of these steps here:

2.2.7.1. Initial setting
/*
 *  camera.ino - Simple camera example sketch
 *  Copyright 2018, 2022 Sony Semiconductor Solutions Corporation
 *
 *  This library is free software; you can redistribute it and/or
 *  modify it under the terms of the GNU Lesser General Public
 *  License as published by the Free Software Foundation; either
 *  version 2.1 of the License, or (at your option) any later version.
 *
 *  This library is distributed in the hope that it will be useful,
 *  but WITHOUT ANY WARRANTY; without even the implied warranty of
 *  MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the GNU
 *  Lesser General Public License for more details.
 *
 *  You should have received a copy of the GNU Lesser General Public
 *  License along with this library; if not, write to the Free Software
 *  Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA  02110-1301  USA
 *
 *  This is a test app for the camera library.
 *  This library can only be used on the Spresense with the FCBGA chip package.
 */

#include <SDHCI.h>
#include <stdio.h>  /* for sprintf */

#include <Camera.h>

#define BAUDRATE                (115200)
#define TOTAL_PICTURE_COUNT     (10)

SDClass  theSD;
int take_picture_count = 0;

First, when using the Spresense camera library, you need to include the header file <Camera.h>.

#include <Camera.h>

Including this header file makes it possible to use the theCamera instance.

After that, we define variables that are used in the loop() function.

int take_picture_count = 0;

The take_picture_count, is a variable which is counting up every second when takePicture() is called. When you use this variable you can control the file name and maximum file number. (In this example, it stops taking picture when picture number is 10.)

2.2.7.2. error print
/**
 * Print error message
 */

void printError(enum CamErr err)
{
  Serial.print("Error: ");
  switch (err)
    {
      case CAM_ERR_NO_DEVICE:
        Serial.println("No Device");
        break;
      case CAM_ERR_ILLEGAL_DEVERR:
        Serial.println("Illegal device error");
        break;
      case CAM_ERR_ALREADY_INITIALIZED:
        Serial.println("Already initialized");
        break;
      case CAM_ERR_NOT_INITIALIZED:
        Serial.println("Not initialized");
        break;
      case CAM_ERR_NOT_STILL_INITIALIZED:
        Serial.println("Still picture not initialized");
        break;
      case CAM_ERR_CANT_CREATE_THREAD:
        Serial.println("Failed to create thread");
        break;
      case CAM_ERR_INVALID_PARAM:
        Serial.println("Invalid parameter");
        break;
      case CAM_ERR_NO_MEMORY:
        Serial.println("No memory");
        break;
      case CAM_ERR_USR_INUSED:
        Serial.println("Buffer already in use");
        break;
      case CAM_ERR_NOT_PERMITTED:
        Serial.println("Operation not permitted");
        break;
      default:
        break;
    }
}

Interpret the error code defined in Camera library and output the error content to serial monitor.

2.2.7.3. preview callback
/**
 * Callback from Camera library when video frame is captured.
 */

void CamCB(CamImage img)
{

  /* Check the img instance is available or not. */

  if (img.isAvailable())
    {

      /* If you want RGB565 data, convert image data format to RGB565 */

      img.convertPixFormat(CAM_IMAGE_PIX_FMT_RGB565);

      /* You can use image data directly by using getImgSize() and getImgBuff().
       * for displaying image to a display, etc. */

      Serial.print("Image data size = ");
      Serial.print(img.getImgSize(), DEC);
      Serial.print(" , ");

      Serial.print("buff addr = ");
      Serial.print((unsigned long)img.getImgBuff(), HEX);
      Serial.println("");
    }
  else
    {
      Serial.println("Failed to get video stream image");
    }
}

This function is registered on startStreaming() method and it will be called when the preview image is available. This function, check the availability of the CamImage instance at first, and then convert pixel format from YUV422 to RGB565. After the conversion, message of data size and memory address of the image will be sent via Serial. Generally, at this moment, add implementation that the image data will be displayed on a connected LCD monitor like a camera view finder.

2.2.7.4. setup()
/**
 * @brief Initialize camera
 */
void setup()
{
  CamErr err;

  /* Open serial communications and wait for port to open */

  Serial.begin(BAUDRATE);
  while (!Serial)
    {
      ; /* wait for serial port to connect. Needed for native USB port only */
    }

  /* Initialize SD */
  while (!theSD.begin())
    {
      /* wait until SD card is mounted. */
      Serial.println("Insert SD card.");
    }

  /* begin() without parameters means that
   * number of buffers = 1, 30FPS, QVGA, YUV 4:2:2 format */

  Serial.println("Prepare camera");
  err = theCamera.begin();
  if (err != CAM_ERR_SUCCESS)
    {
      printError(err);
    }

  /* Start video stream.
   * If received video stream data from camera device,
   *  camera library call CamCB.
   */

  Serial.println("Start streaming");
  err = theCamera.startStreaming(true, CamCB);
  if (err != CAM_ERR_SUCCESS)
    {
      printError(err);
    }

  /* Auto white balance configuration */

  Serial.println("Set Auto white balance parameter");
  err = theCamera.setAutoWhiteBalanceMode(CAM_WHITE_BALANCE_DAYLIGHT);
  if (err != CAM_ERR_SUCCESS)
    {
      printError(err);
    }

  /* Set parameters about still picture.
   * In the following case, QUADVGA and JPEG.
   */

  Serial.println("Set still picture format");
  err = theCamera.setStillPictureImageFormat(
     CAM_IMGSIZE_QUADVGA_H,
     CAM_IMGSIZE_QUADVGA_V,
     CAM_IMAGE_PIX_FMT_JPG);
  if (err != CAM_ERR_SUCCESS)
    {
      printError(err);
    }
}

The setup() initially sets up serial for message display, then calls Camera’s begin() method function. After that, it will enable preview callback function setting and callback with startStreaming(), and set auto white balance mode to day-light by calling setAutoWhiteBalanceMode(). Finally, with setStillPictureImageFormat(), setting for Quad HD size photograph is done.

2.2.7.5. loop()
/**
 * @brief Take picture with format JPEG per second
 */

void loop()
{
  sleep(1); /* wait for one second to take still picture. */

  /* You can change the format of still picture at here also, if you want. */

  /* theCamera.setStillPictureImageFormat(
   *   CAM_IMGSIZE_HD_H,
   *   CAM_IMGSIZE_HD_V,
   *   CAM_IMAGE_PIX_FMT_JPG);
   */

  /* This sample code can take pictures in every one second from starting. */

  if (take_picture_count < TOTAL_PICTURE_COUNT)
    {

      /* Take still picture.
      * Unlike video stream(startStreaming) , this API wait to receive image data
      *  from camera device.
      */

      Serial.println("call takePicture()");
      CamImage img = theCamera.takePicture();

      /* Check availability of the img instance. */
      /* If any errors occur, the img is not available. */

      if (img.isAvailable())
        {
          /* Create file name */

          char filename[16] = {0};
          sprintf(filename, "PICT%03d.JPG", take_picture_count);

          Serial.print("Save taken picture as ");
          Serial.print(filename);
          Serial.println("");

          /* Remove the old file with the same file name as new created file,
           * and create new file.
           */

          theSD.remove(filename);
          File myFile = theSD.open(filename, FILE_WRITE);
          myFile.write(img.getImgBuff(), img.getImgSize());
          myFile.close();
        }
      else
        {
          /* The size of a picture may exceed the allocated memory size.
           * Then, allocate the larger memory size and/or decrease the size of a picture.
           * [How to allocate the larger memory]
           * - Decrease jpgbufsize_divisor specified by setStillPictureImageFormat()
           * - Increase the Memory size from Arduino IDE tools Menu
           * [How to decrease the size of a picture]
           * - Decrease the JPEG quality by setJPEGQuality()
           */

          Serial.println("Failed to take picture");
        }
    }
  else if (take_picture_count == TOTAL_PICTURE_COUNT)
    {
      Serial.println("End.");
      theCamera.end();
    }

  take_picture_count++;
}

In the loop() function, wait for 1 second by using sleep() function at the beginning. After 1 second, it checks whether the value of the take_picture_count variable exceeds 10. If it does not exceed 10, it enters the photo shooting process. In the shooting process, the takePicture() method function is called, take a picture and assign the obtained picture to the img variable. Then check that if the img variable is available with the isAvailable() function, and save the acquired image to the SD card. Finally, take_picture_count is incremented (by 1) and the loop() function is terminated. When the value of the take_picture_count variable is 10, end() methods of Camera is called and the Camera library procedure finishes.

The explanation for using the sample finished here. Let’s create an original camera device using the Spresense camera.


2.3. DNNRT Library

The DNN Runtime library can perform recognition processing using the Deep Neural Network (DNN) using trained models by Neural Network Libraries or Neural Network Console provided by Sony.

dnnrt overview en

DNNRT library has 2 parts. One is DNNRT as a core library, and second is DNNVariable which is for using data I/O.

This section explains how to use DNNRT for recognizing handwritten characters from 0 to 9 (number_recognition.ino) as an example.

2.3.1. Preparation of a trained model

To use the DNNRT, first you need a trained model. This section explains the preparation of the trained model for this example.

2.3.1.1. Installation of Neural Network Console

We use the Neural Network Console (NNC) to create a trained model. You can use cloud version from NNC website.

2.3.1.2. Training
  1. Start up NNC and select the sample project image_recognition.MNIST.LeNet, then it shows the dialog to create a new project. In this tutorial, the name of new project is myproject.

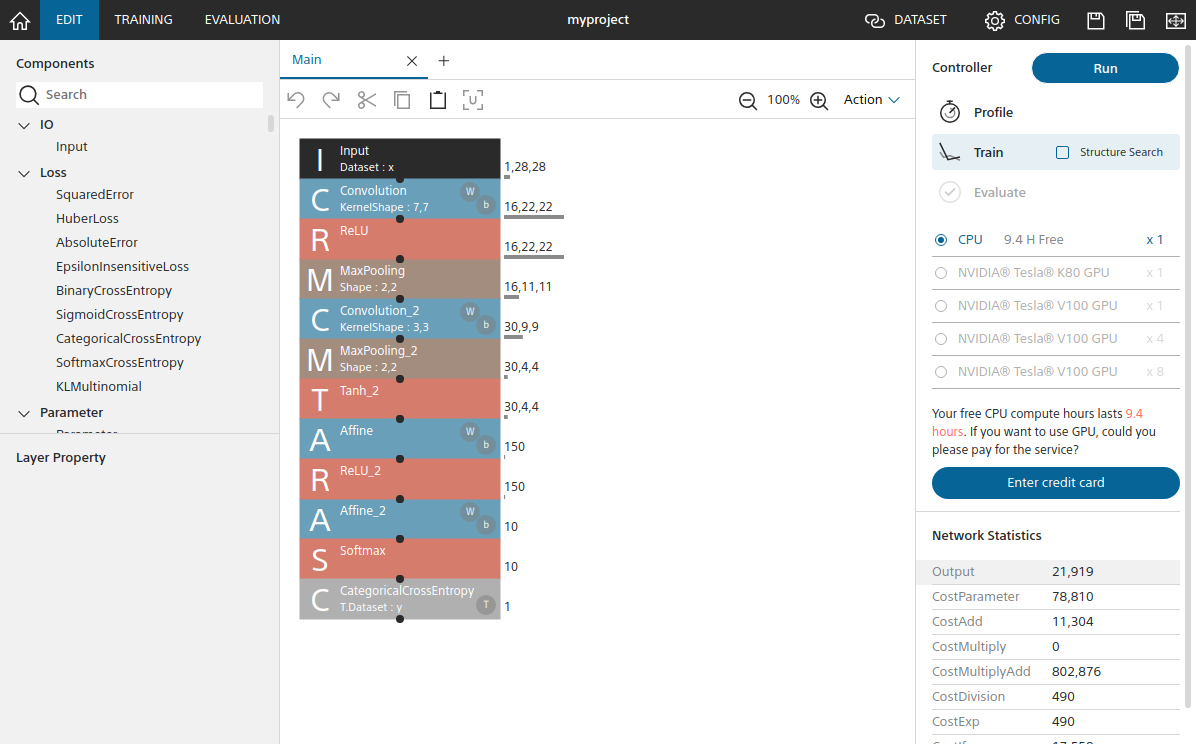

  2. After selecting myproject , editor of NNC is appeared.

    edit
    Figure 7. Editor
  3. In this tutorial, there is no need to edit the network model. Press Run on the upper right of the edit window to start training. The graph showing the training result will be updated.

    start

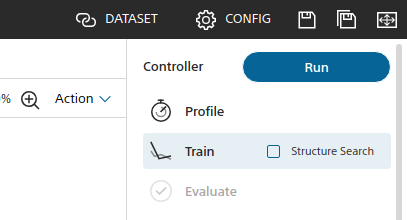

    Figure 8. Start training
  4. If Training Completed message is displayed on the console at the bottom of the window, training is complete.

    TRAIN

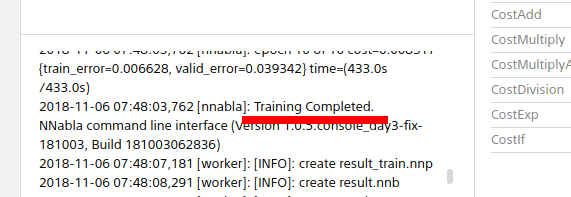

    Figure 9. Training Completed
    TIP

    Machine learning takes a very long time.

  5. After training completed, evaluate trained model. Press Run on the upper right of the training window to start evaluation.

    EVALUATE

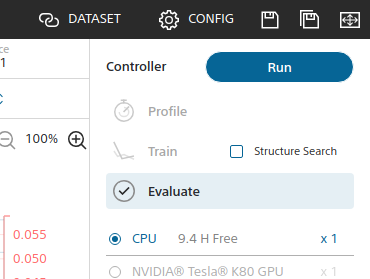

    Figure 10. Start evaluation
  6. After evaluation completed, evaluation results will be shown. You can confirm that images in x:image and the numbers in y:label are completely matched.

    Download this project as NNB file to use DNNRT. Select NNB(NNabla C Runtime file format) from drop down list, and press Download Project to download as result.nnb file.

    DOWNLOAD

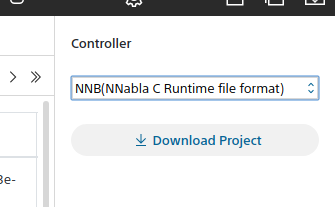

    Figure 11. Download trained model
  7. Rename downloaded trained model file to network.nnb, and copy both the trained model as network.nnb and an image which you want to recognize into SD Card.

    TIP

    This example can support only PGM (Portable Grayscale Map) file format for the image. If you can’t make PGM file, the example has sample data for a quick trial here: sample PGM image files. An example of network.nnb generated by the Neural Network Console (NNC) is also provided on the same folder.

You are now ready to run the number_recognition.ino example.

2.3.2. Handwritten character recognition example

The trained model created by image_recognition.MNIST.LeNet takes one image of 28 x 28 size and outputs 10 arrays. These 10 arrays correspond to the numbers recognized by the index, and the probability of each number is output in the array. For example, at the head of an array (index 0), the probability that the input image is the number "0" is output.

Example of displaying the probability of each number
DNNVariable output = dnnrt.outputVariable(0);

Serial.println(output[0]);   // probability 0 of input image.
 ...
Serial.println(output[9]);   // probability 9 of input image.

In number_recognition.ino, the index with the highest probability from the array of output probabilities is serially outputted together with the probability as the recognized number.

You can change the image you want to input in the following line of number_recognition.ino.

  File pgmfile("number4.pgm");
2.3.2.1. When using multiple subcores

The number_recognition.ino sketch performs the number recognition by using one sub-core by default. You can specify the number of subcores as the second argument of the begin() function and use multiple subcores to perform the recognition process faster. The number of subcores you can specify depends on the number of available subcores, and it can be from 1 to the maximum of 5.

  int ret = dnnrt.begin(nnbfile, 2); // if you use two subcores

2.4. EEPROM Library

EEPROM is a memory that can hold non-volatile data. This means that the data stored in the EEPROM will be retained while the power is off. The Spresense main board does not have the EEPROM mounted, but an EEPROM is emulated using the SPI Flash memory. This library allows writing and reading to the EEPROM emulated by the SPI Flash.

The API specification of the EEPROM library is documented in the Arduino EEPROM library. Also see README.md for details of advanced features.

The examples for the EEPROM library are available from the menu of Arduino IDE: File → Examples → Examples for Spresense EEPROM. The EEPROM library is compatible with Arduino, so you can use the same example sketches as Arduino.

The default size of the EEPROM is 4000 bytes, that is determined by the value of E2END defined in EEPROM.h.

The maximum capacity of the SPI Flash available from your sketch is 4 Mbytes on the Spresense board. As long as the E2END is the smaller than this maximum capacity, it’s possible to increase the size of the EEPROM by changing the E2END definition.

2.5. eMMC Library

2.5.1. Overview

The eMMC library is a library for accessing eMMC device on the Spresense Add-on board. The eMMC can be accessed from your program or optionally you can configure the system to access the eMMC device via USB port on the Spresense extension board.

The eMMC library has an API structure similar to the Arduino SD library, and it can be easily ported from the existing sketch using the SD library.

A distinctive feature of the eMMC Library is providing the USB MSC (Mass Storage Class) function. You can directly access the file on the eMMC device by connecting to the USB on the Spresense extension board from your PC.

If the current time of 1980/1/1 or later is set by RTC Library, the created and modified timestamps of files and directories based on the RTC time will be recorded in the file system.

2.5.2. Functions

See API references eMMC Library API for the details.

Function Description

eMMC.begin()

Initialize the eMMC device. By specifying the pin number for power control as an argument, the eMMC device is initialized after the power is turned on.

eMMC.end()

Finalize the eMMC device. If the power control pin is specified in begin(), the device is turned off at the end.

eMMC.beginUsbMsc()

Start USB MSC (Mass Storage Class) function.

eMMC.endUsbMsc()

Stop USB MSC (Mass Storage Class) function.

eMMC.format()

Format the eMMC device with FAT32 filesystem by default.

eMMC.open()

Opens a file on the eMMC device. When the file is opened for writing, it will be created if it doesn’t exist yet.
FILE_READ: open the file for reading, starts at the beginning of the file.
FILE_WRITE: open the file for reading and writing, starts at the end of the file.
This function returns File object. See File library for file operations.

eMMC.exists()

Tests whether a file or directory exists on the eMMC device.

eMMC.mkdir()

Create a directory on the eMMC device.

eMMC.rmdir()

Remove a directory from the eMMC device..

eMMC.remove()

Remove a file from the eMMC device.

2.5.3. Examples

Four sample sketches using eMMC library are provided here:

Example Description

format.ino

This is an example to format the eMMC device. Execute it once when you use the eMMC device for the first time.

read_write.ino

This is an example to read and write files on the eMMC device.

UsbMsc.ino

This is a sample for the USB MSC function. If you run this sketch, the eMMC device on the Spresense extension board will be mounted as a drive on the PC and you will be able to access the eMMC device directly from the PC.

UsbMscAndFileOperation.ino

This is an application combining USB MSC function and file operations.
For files on the eMMC device, file operation from an application program and the file operation from PC, with USB MSC, must be operated exclusively and can not be used at the same time.
In this sample sketch, after acquiring and displaying the file list from the application program the USB MSC function is enabled. You can use the USB MSC function from the PC to operate the files in the eMMC device. Furthermore, by terminating the USB MSC function, file operation is performed again from within the program.


2.6. File Library

2.6.1. Overview

File library is a library commonly used by various storage libraries. File objects are generated by the open() function in the SDHCI, Flash and eMMC libraries. This library provides the file operations for the opened File object.

2.6.2. Functions

See API references File Library API for the details.

When File instance name is myFile, open the file as follow.

#include <SDHCI.h>
SDClass SD;
File myFile;

  myFile = SD.open("test.txt");

The following functions are provided for the myFile object.

Function Description

myFile.write()

Write data to the file.

myFile.read()

Read from the file.

myFile.peek()

Read a byte from the file without advancing to the next one. That is, successive calls to peek() will return the same value, as will the next call to read().

myFile.available()

Check if there are any data available for reading from the file, and returns the number of bytes available.

myFile.flush()

Ensures that any data written to the file are physically saved to the storage. This is done automatically when the file is closed.

myFile.seek()

Seek to a new position in the file, which must be between 0 and the size of the file (inclusive).

myFile.position()

Get the current position within the file (i.e. the location to which the next byte will be read from or written to).

myFile.size()

Get the size of the file.

myFile.close()

Close the file, and ensure that any data written to it is physically saved to the storage.

myFile.bool()

Tests whether a file or directory exists on the storage.

myFile.name()

Returns the file name.

myFile.isDirectory()

Directories are special kinds of files, this function reports if the current file is a directory or not.

myFile.openNextFile()

Reports the next file or folder in a directory.

myFile.rewindDirectory()

rewindDirectory() will bring you back to the first file in the directory, used in conjunction with openNextFile().

2.6.3. Examples

A sample sketch using File library are provided here:

Example Description

read_write.ino

This is a example to read and write files.


2.7. Flash Library

2.7.1. Overview

The Flash library is a library for accessing flash device on the Spresense main board.

The Flash library has an API structure similar to the Arduino SD library, and it can be easily ported from the existing sketch using the SD library.

2.7.2. Functions

See API references Flash Library API for the details.

Function Description

Flash.begin()

Always return true.

Flash.beginUsbMsc()

Start USB MSC (Mass Storage Class) function.

Flash.endUsbMsc()

Stop USB MSC (Mass Storage Class) function.

Flash.format()

Format the Flash device with FAT32 filesystem by default.

Flash.open()

Opens a file on the Flash device. When the file is opened for writing, it will be created if it doesn’t exist yet.
FILE_READ: open the file for reading, starts at the beginning of the file.
FILE_WRITE: open the file for reading and writing, starts at the end of the file.
This function returns File object. See File library for file operations.

Flash.exists()

Tests whether a file or directory exists on the Flash device.

Flash.mkdir()

Create a directory on the Flash device.

Flash.rmdir()

Remove a directory from the Flash device..

Flash.remove()

Remove a file from the Flash device.

2.7.3. Examples

Four sample sketches using Flash library are provided here:

Example Description

format.ino

This is an example to format the flash device. Although the flash device is formatted and shipped, if it is necessary to re-format, please execute this sketch. The formatting deletes all the user data except for firmwares. EEPROM data created on the flash are also deleted.
This sketch uses a serial monitor. Open the serial monitor at a communication rate of 115200 baud.
Start formatting by typing y from the serial monitor.
During formatting, the 4 LEDs will light up, and after formatting is complete, the LEDs will blink.
The format takes about 40 seconds. Be careful not to turn off the power during formatting.

read_write.ino

This is an example to read and write files on the Flash device.


2.8. GNSS Library

The GNSS Library is for controlling the GNSS features and acquiring positioning information. This library is available in the Arduino environment.

There are two types of environments in which GNSS positioning functions can be used. This library supports both environments with a common library.

  • Built-in GNSS

  • GNSS Add-on board

The built-in GNSS is included in the CXD5602 and it does not require any pin allocations or shields. An antenna is also included on the Spresense main board.

When using the GNSS Add-on board, the GNSS Add-on board itself and an antenna are required separately. For details, please refer to How to connect and prepare Spresense GNSS Add-on board and GNSS antenna.

If you want to run the built-in GNSS application on a GNSS add-on board, you can easily port it by changing the SpGnss to the SpGnssAddon class on your sketch.

The following examples are provided:

gnss.ino is a simple demonstration of how GNSS provides output to the USB serial port. This example uses the GNSS library output format directly. For more information please refer to GNSS.h

gnss_tracker is a more complex tracker, which saves data to the SD card. It converts the output into NMEA format for compatibility with existing GNSS modules and software.

gnss_nmea is an example that the positioning information from the built-in GNSS outputs to serial in NMEA format.

gnss_addon is an example that the positioning information from the GNSS Add-on board outputs to serial.

gnss_addon_nmea is an example that the positioning information from the GNSS Add-on board outputs to serial in NMEA format.

2.8.1. More Information

Please refer to Spresense SDK GNSS documentation for further information for the GNSS functions.


2.9. LowPower Library

LowPower library provides support for power-saving features of Spresense:

  • The sleep state has two modes: Cold Sleep or Deep Sleep

    Deep Sleep

    Sleep mode with the lowest power consumption. PMIC (Power Management IC) turns the power on for CXD5247 only, and CXD5602’s power is turned off.

    Cold Sleep

    Sleep mode with minimum power consumption. In this mode other than CXD5247, CXD5602’s power is turned on as well. Although this mode has more power consumption than Deep Sleep, it can be waken up from Cold Sleep state by GPIO trigger.

About the power consumption during sleeping, when the SD card is inserted on the extension board, the current consumption increases by about 5 mA for the power supply to the SD card.
  • Get the cause waked-up from the sleep state

  • Enable/Disable the waked-up cause

  • Dynamic switching to three clock modes

    CLOCK_MODE_156MHz

    This is the clock mode with the highest performance. This clock mode is selected at startup. The CPU clock is 156 MHz using PLL.

    CLOCK_MODE_32MHz

    Reduce power consumption by decreasing the system clock to 32 MHz. When this clock mode is selected, the core voltage of CXD5602 is 0.7V. The CPU clock is 32 MHz using a PLL.

    CLOCK_MODE_8MHz

    Decrease the system clock to 8 MHz. This clock mode is the lowest power consumption. The core voltage is 0.7 V, and the CPU operates with the internal oscillator without PLL. If the PLL is not used, the power consumption can be further reduced by turning TCXO power off.

In general, the lower the clock, the lower power consumption, but the lower performance. Please note, not all of hardware functions operate in low clock mode. Details will be described later.

For more details of this library, see the API reference LowPower Library API.

2.9.1. The clock mode

By specifying either CLOCK_MODE_156MHz, CLOCK_MODE_32MHz or CLOCK_MODE_8MHz as an argument of clockMode(), the system clock with application CPU is dynamically changed. By lowering the clock, the power consumption can be reduced.

The current consumption at the battery terminals is shown for each clock mode. The measurement conditions are only using the Spresense main board which supplies 3.7V power from the battery connector. The software is in idle state.

lowpower current
Figure 12. Battery current measurement with LowPower
Clock Mode Battery current

CLOCK_MODE_156MHz

6.68 mA

CLOCK_MODE_32MHz

3.66 mA

CLOCK_MODE_8MHz

3.20 mA

CLOCK_MODE_8MHz + TCXO=PowerOff

1.16 mA

This measurement results include current consumption by the Power-LED on the main board.

Aside from controlling clock mode by the user application, the clock mode may be switched automatically inside the system.

  • In USB communication function such as USB MSC (Mass Storage), the clock mode will automatically be CLOCK_MODE_156MHz.

  • In GNSS positioning function, the clock mode will automatically be CLOCK_MODE_156MHz or CLOCK_MODE_32MHz.

  • During the mounting process of the SD card, it is automatically clocked up to CLOCK_MODE_156 MHz and returned to the previous state after mounting.

Therefore, note that it does not necessarily change to the clock mode specified by the user. The current clock mode can be obtained with the getClockMode() function to check if the clock mode has been changed.

Also, not all functions work in low clock mode. The restrictions are as follow:

  • If you use the audio functions, set the clock mode to CLOCK_MODE_156 MHz

  • If you use the camera functions, set the clock mode to CLOCK_MODE_156MHz or CLOCK_MODE_32MHz

2.9.2. Examples

For the basic usage of this library, see the examples of this library through the Arduino IDE menu File → Examples → Examples for Spresense LowPower.

Example Description

ExternalWakeup

Wake-up by GPIO from cold sleep

TimedWakeup

Wake-up by RTC alarm from cold sleep

TimedWakeupDeep

Wake-up by RTC alarm from deep sleep

Reboot

Reboot the system

WatchdogReboot

Reboot the system by watchdog timer

ClockChange

Switch the clock mode to 156MHz/32MHz/8MHz.


2.10. LTE library

The Spresense LTE library enables connecting to the Internet via LTE networks.

2.10.1. Library configuration

The Spresense LTE library configuration is shown in Figure 13.

Diagram
Figure 13. Spresense LTE Library Configuration

The Spresense LTE library provides classes belonging to two categories:
One category consists of library classes that communicate with the modem, and the other one consists of library classes supporting e.g. Ethernet or WiFi. This library class implements the client interface.

The library classes belonging to the two categories are described below.

2.10.2. Modem communication classes

There are three library classes that communicate with the modem.

  • LTE

  • LTEScanner

  • LTEModem

These provide functionality similar to the Arduino GSM library.

2.10.2.1. Modem status

The library modem communication class manages the state of the modem.
Table 16 shows the different modem states.

Table 16. Modem Status
status description

OFF

The modem is powered off.

IDLE

The modem is powered on but wireless is off.

CONNECTING

Registering modem to LTE network.

SEARCHING

Radio is turned on and the LTE network is being searched.

READY

The modem is registered to the LTE network and has been assigned an IP address.

ERROR

The modem is in an error state.

State transitions happen either because of class method being called or by events occurring in the communication with the LTE network.
The state transition diagram of the modem is shown in Figure 14.

Diagram
Figure 14. Modem state transitions

The functions provided by the modem communication class are described below.

2.10.2.2. LTE class

Provides functionality for registering the modem with the LTE network and assigning an IP address to the modem.

Exploring the LTE network

In order to register your modem in the LTE network, it is necessary to establish a communication path between the modem and the network.
First, use the begin() method to turn the modem on and start scanning the LTE network. The begin() method is defined as follows.

begin(
    char* pinCode = NULL,
    bool restart = true,
    bool synchronous = true)
  • pinCode is the the SIM PIN code. If your SIM card has a PIN code, please provide it as a string (e.g. "1234").
    If your SIM does not have a PIN lock code, then set pinCode to NULL.

If the PIN unlock fails, the modem will go into ERROR state.
Depending on the SIM you are using, there is a limit to the number of attempts to unlock the PIN lock, so if unlocking fails, please make sure that the code you are using is correct.

  • restart is the restart flag. If set to true the modem will be restarted before it starts exploring the LTE network. If set to false the modem will start and begin exploring the LTE network directly.

  • synchronous sets the method execution mode. If set to false, begin() will be executed asynchronously.

Asynchronous execution is currently not supported, so synchronous mode will be used even if the parameter is set to false.

By default the PIN unlock code is set to NULL and both the reboot flag and the sync flag are set to true.
The return value indicates the modem state. It is SEARCHING when a LTE network search is started.

If begin() fails, the ERROR status is returned to the caller.
Information about the cause of the ERROR status is provided in the serial output.
Below is a list of errors and how to correct them.

Table 17. begin() method errors and how to correct them
Error Cause Correction

Failed to get PIN status

Make sure the SIM is correctly inserted.

Failed to enter PIN code

Make sure the correct SIM PIN code is used.

Failed to turn on radio

Provide the SIM PIN code.

Register the modem to the LTE network

Once you have started exploring the LTE network, use the attach() method to register the modem with the it and build a communication path between the modem and the network.

Depending on your coverage, it may take a few minutes for the modem to register.

The attach() method is defined as follows

attach(
    char *apn,
    char *userName = NULL,
    char* password = NULL,
    LTENetworkAuthType authType = LTE_NET_AUTHTYPE_CHAP,
    LTENetworkIPType ipType = LTE_NET_IPTYPE_V4V6,
    bool synchronous = true)

The parameters given to the attach() method define the APN (Access Point Name), network login credentials and method behavior. The APN specifies the connection point required for communicating in LTE networks. The APN parameters are shown in Table 18.

Table 18. APN Parameters
parameter description

apn

Access point name

userName

User name. Default setting is unspecified (NULL).

password

Password. Default setting is unspecified (NULL).

authType

Authentication type. Choose from PAP, CHAP, or None. Default setting is CHAP.

ipType

APN protocol. Select from IPv4, IPv6, and IPv4v6. The default setting is IPv4v6.

Set the APN parameters according to the SIM card you are using.

If the synchronous parameter is set to true, the attach() method will return when the modem is done registering to the LTE network. If set to false, the attach() method will return immediately while modem registration is done in asynchronously.

The return value indicates the status of the modem.

  • If the synchronization flag is true, the READY status is returned when the modem is registered with the LTE network.

  • If the synchronization flag is false, the CONNECTING status is returned when the modem registration process is started.
    To verify that the modem registration is complete, check the status of the modem with the getStatus() method. It will return READY when it the modem is registered to the LTE network.

If the attach() method fails, the ERROR status is returned.
A message with more error information is provided on the serial output.
Below is a list of common errors and how to correct them.

Table 19. attach() method errors and how to correct them
Error Cause Correction method

Rejected from the network

Make sure the provided APN matches that of your SIM.

Get the IP address

You can use the getIPAddress() method to get the IP address assigned to the modem by the LTE network.

If the modem is not in the READY state, an IP address cannot be obtained.
The only type of IP address that can be obtained with this method is IPv4.

To get the time

You can use the getTime() method to get the number of seconds since Epoch (Epoch; 1970-01-01 00:00:00 (UTC)).

If the modem is not in the READY state, the time cannot be obtained.

Detach the modem from the LTE network

You can use the detach() method to detach the modem from the network and release the IP address assigned to the modem.

If the modem is in the CONNECTING state, you can use the detach() method to switch back to the SEARCHING state.

Turn off the power of the modem

The shutdown() method can be used to turn off the power of the modem.

If the modem is in the ERROR state, the shutdown() method can be used to return it to the OFF state.

2.10.2.3. LTEScanner class

This class provides a function to acquire the Received Signal Strength Indicator (RSSI) received by the modem and the name of the operator used for communication.

Retrieving the network signal strength (RSSI)

Use the getSignalStrength() method to get the strength of the signal that the modem is receiving. The unit is dBm. If there is no network coverage, the value "N/A" will be returned.

In order to use this method, the modem status must first be set to SEARCHING or READY using the LTE class.

Get the name of the network operator

You can use the getCurrentCarrier() method to get the name of the operator that registered the modem.

In order to use this method, the modem must first be set to state READY using the LTE class.

2.10.2.4. LTEModem class

Provides a function to obtain the firmware version and International Mobile Equipment Identity (IMEI) of a modem.

To use the functions of this class, the modem status must first be set to IDLE using the begin() method. It can also be used when the modem is in the SEARCHING or READY states.

Get the modem firmware version

Use the getFirmwareVersion() method to get the firmware version of your modem.

Obtaining the International Mobile Equipment Identity (IMEI)

You can use the getIMEI() method to get the International Mobile Equipment Identity (IMEI).

2.10.3. Client Interface Library Classes

There are three client interface library classes.

  • LTEClient

  • LTETLSClient

  • LTEUDP

The LTE library is trying to be as compatible as possible with Ethernet library and WiFi library to enable porting from the Arduino Ethernet and Arduino WiFi libraries.
It is not possible to run Ethernet-compatible code as-is but with modifications specific to the LTE library, e.g. for the LTE network registration process, it should be able to run it.

The functions provided by the client interface library class are described below.

2.10.3.1. LTEClient class

Provides client communication functions using the TCP protocol.
It realizes the Arduino Client interface.

In order to use the LTEClient class, the modem must first be set to state READY using the LTE class.

For details on the methods, see the API Reference Manual LTE Client API.

2.10.3.2. LTETLSClient class

Provides client communication functions using the TLS protocol.
It realizes the Arduino Client interface.

In order to use the LTEClient class, the modem must first be set to state READY using the LTE class.

For details on the methods, see the API Reference Manual LTE TLS Client API.

Configuring certificates

This section describes how to configure the root certificate, client certificate, and private key used in the TLS protocol.
There are methods available in this class that support storing the certificates and key on the board in three different ways. Please select the one most suitable for your environment:

  • Place the certificate and private key files on a microSD card etc.
    An example of using a microSD card for this is described in Checking the operation of HTTP Client using TLS protocol.

  • Generate an array in PEM format using some program and store it in the source code.

  • Generate an array in DER format using some program and store it in the source code.

2.10.3.3. LTEUDP class

Provides client communication functions using the UDP protocol.
It realizes the Arduino UDP interface.

In order to use the LTEClient class, the modem must first be set to state READY using the LTE class.

For details on the methods, please refer to the API Reference Manual LTE UDP API.

2.10.4. Explanation with sample code

This is an actual tutorial on how to use Spresense LTE using the LTE sample code included in the Spresense Arduino Package.
For more details, please refer to LTE tutorial.

Now, let’s go ahead and create your original IoT device using Spresense LTE!


2.11. MultiCore MP Library

2.11.1. Overview

MultiCore MP Library is a library to support multi-core programming in Arduino environment. CPU core that is launched by default is called MainCore, and CPU cores are booted from MainCore are called SubCore. The total number of SubCore are 5, from SubCore 1 to SubCore 5.

You can select MainCore and SubCore 1 ~ 5 by selecting Tools→ Core in Arduino IDE menu. Program on each core and load the binary compiled for each core on the Spresense board and run it. By using the MP library, you can program each core and can work them.

2.11.2. Functions

The MP library mainly provides the following functions:

  • Start and stop SubCore(s)

  • Inter-core communication function

  • Inter-core exclusive control function

  • Allocate and release shared memory

  • Exclusive log output function

For details on each API, refer to the API Reference Manual MP Library API.

2.11.2.1. MP class

By including MP.h, an object named MP will be created.

#include <MP.h>

The following table is a list of functions provided by the MP class. Please note some functions are different between MainCore and SubCore, and some functions are not supported by SubCore (*: supported, -: not supported)

Function Description MainCore SubCore

MP.begin()

Control multi-core boot.
(MainCore) Start SubCore with the specified number in the argument.
(SubCore) Called without an argument, notifies MainCore that startup is complete.
Please refer to Boot SubCore for details.

*

*

MP.end()

Control multi-core shutdown.
(MainCore) Stop SubCore with the specified number in the argument.
(SubCore) Do nothing.
For details, please refer to Shutdown SubCore.

*

*

MP.Send()

Send data to the specified core.
(MainCore) Send data to SubCore with the specified number in the argument.
(SubCore) Send data to SubCore with the specified number in the argument. Sent to MainCore without argument of subid.
For details, refer to Communication between cores.

*

*

MP.Recv()

Receive data from the specified core.
(MainCore) Receive data from SubCore with the specified number in the argument.
(SubCore) Receive data from SubCore with the specified number in the argument. Received from MainCore without argument of subid.
For details, refer to Communication between cores.

*

*

MP.RecvTimeout()

Set the receiver mode and timeout value for Recv().
There are three waiting modes, which are selected by argument.
For details, refer to Communication between cores.

*

*

MP.GetRecvTimeout()

Get the value set by RecvTimeout().

*

*

MP.Virt2Phys()

Convert the virtual address specified by the argument to a physical address. Physical address map is common for all cores. On the other hand, virtual address map is different for each core. Since SubCore runs on virtual address, use this function to convert it to a physical address when sending an address to other core.
See Application memory for details.

*

*

MP.GetMemoryInfo()

Get the status of application’s available memory.
usedMem: Used total memory size (Byte)
freeMem: Available total memory size (Byte)
largestFreeMem: Continuous maximum available memory size (Byte)
See Application memory for details.

*

*

MP.EnableConsole()

Enable input from serial monitor (Serial).
Make sure that input from Serial is accepted only by one core. After the system startup, only MainCore is enabled.

*

*

MP.DisableConsole()

Disable input from serial monitor (Serial).
If you want to change the Serial input to the specific SubCore, call DisableConsole() from MainCore and call EnableConsole() on the SubCore.
For usage, please refer to Shell in Examples.

*

*

MP.AllocSharedMemory()

Allocate shared memory and return the first physical address. Allocation and release of shared memory are in 128 Kbyte units. Allocate 128 Kbyte aligned memory from the size specified in the argument. If it cannot allocate due to lack of memory, NULL is returned.
For usage, please refer to SharedMemory in Examples.

*

-

MP.FreeSharedMemory()

Release the shared memory by passing the address allocated by AllocSharedMemory().

*

-

2.11.2.2. MPMutex class

This provides functions for exclusive control between multiple cores. Create a mutex object by specifying MP_MUTEX_ID number (0 to 10) as an argument.

#include <MPMutex.h>

MPMutex mutex(MP_MUTEX_ID0);

The functions provided by MPMutex are shown below.

Function Description MainCore SubCore

mutex.Trylock()

Lock mutex. If it can be locked, return 0. If it cannot be locked, return non-zero value.
For usage, please refer to Mutex in Examples.

*

*

mutex.Unlock()

Unlock mutex locked by Trylock(). If it can be unlocked, return 0. If it cannot be unlocked, return non-zero value.
For usage, please refer to Mutex in Examples.

*

*

2.11.2.3. MPLog() function

This is a function to output log in multi-core environment.

Function Description MainCore SubCore

MPLog()

This is a function macro to output log with exclusive control between cores. The arguments can use the same format as the general printf().
(MainCore) [Main] is displayed as the prefix of the log.
(SubCore) [Sub number] is displayed as the prefix of the log.
It is possible to identify per-core log output in multi-core environment.
This is also available form an interrupt handler, but the log may be interrupted without exclusive control and displayed.

*

*

2.11.2.4. Application memory

The total SRAM memory for the application is 1.5 MBytes (= 1536 KBytes). The memory is divided into 128 KByte x 12 memory tiles. Each CPU and SRAM are connected with bus matrix to units of memory tiles. If only one CPU accesses a tile, the CPU can read and write the SRAM without wait-cycles. (This means the same performance as cache on general CPU architectures). On the other hand, if multiple CPUs access the same memory tile, memory access is slowed down. To prevent the above access conflict, each SubCore is using the dedicated memory tiles and runs on the memory tiles.

The mapping of SRAM 1.5 MByte in Arduino environment is shown below.

Diagram
Figure 15. Application SRAM

MainCore uses the first 6 tiles (768 KBytes). The remaining 6 tiles (768 KBytes) are shared and used by SubCore and other libraries.

In the figure above, 256 KByte is allocated to SubCore1 and 128 KByte is allocated to SubCore2. SubCore works on a virtual address beginning from address 0. If it is necessary to refer to a common address for inter-CPU communication etc, convert it to a physical address with MP.Virt2Phys().

In addition, the second half of 768 KByte shared memory may be used by various libraries besides SubCore. The used memory size for each library and each usecase is shown below.

Library UseCase Used Memory Size

Audio, Sensing

For various buffers

256 KByte

Audio

For loading the MP3DEC decoder during MP3 playback

128 KByte

Audio

For loading the MP3ENC encoder during MP3 recording

256 KByte

Audio

For loading the WAVDEC decoder during WAV playback

256 KByte

Audio

For loading the SRC sampling rate converter during WAV recording (except for the case of sampling rate 48kHz)

128 KByte

DNNRT

For loading the dnnrt-mp

128 KByte

The memory size required for SubCore depends on the user application. When compiling a sketch, the following message is output to the log of compilation result. This value shows the memory size that has been allocated for the SubCore.

arduino multicore boot6 sub1

In use case of user application, it may not be possible to operate with insufficient memory. You can check the memory usage by using MP.GetMemoryInfo().

Example code is shown below.

{
  int usedMem, freeMem, largestFreeMem;

  MP.GetMemoryInfo(usedMem, freeMem, largestFreeMem);

  MPLog("Used:%4d [KB] / Free:%4d [KB] (Largest:%4d [KB])\n",
        usedMem / 1024, freeMem / 1024, largestFreeMem / 1024);
}
2.11.2.5. Boot SubCore

Call MP.begin(1~5) from MainCore to start a SubCore by using number (1 to 5) as an argument. On the started SubCore side, the completion of boot up is notified by calling MP.begin() without an argument.

Diagram
2.11.2.6. Shutdown SubCore

Call MP.end(1~5) from MainCore to shutdown a SubCore by using number (1 to 5) as an argument. The specified SubCore is shutdowned.

Diagram
2.11.2.7. Communication between cores

You can send and receive arbitrary data using the MP.Send() and MP.Recv() functions.
There are 3 modes for waiting for reception, and the mode is set by MP.RecvTimeout(). The default is MP_RECV_BLOCKING.

  • MP_RECV_BLOCKING (0): The mode for reception to wait forever until it receives data. (Default)

  • MP_RECV_POLLING (0xffffffff): The mode for polling reception. If there is no received data when Recv() is called, it will be returned immediately. In this mode there is no waiting for reception.

  • Time value (Other value than above): Set the waiting timeout time (milliseconds). It will wait for the specified time when calling Recv(), and it will be timed out if the received data does not come.

Diagram

There are two communication methods for MP.Send() and MP.Receive(): passing data and passing address.

  • Communication with data

    • Prototype

      int MP.Send(int8_t msgid, uint32_t msgdata, int subid)
      int MP.Recv(int8_t *msgid, uint32_t *msgdata, int subid)

    • Argument

      msgid: User can define zero or a positive Message ID (8 bit signed data). User cannot use a negative value.
      msgdata: User can define arbitrary Message Data (32 bit data).
      subid: Specify a SubCore number to communicate. If subid is 0 (optional), it communicates with MainCore.

    • Return

      Send() returns 0 if successful, non-zero if error.
      Recv() returns msgid if successful, negative value if error.

    • Description

      Send both Message ID and Message Data by Send() and receive these values by Recv().

      Send() runs asynchronously. It has an 8-stage transmit FIFO buffer internally, and Send() function immediately returns 0 after pushing transmission data into the FIFO buffer and before the destination core receives data. If this 8-stage buffer becomes full, Send() function returns -EAGAIN(-11).
      On the other hand, the receiver also has an 8-stage receive FIFO buffer. If this receive buffer becomes full, it is judged as the system abnormal condition and the program assert. If this happens, please check whether the receiving core is working properly or the communication load is too high.

  • Communication with address

    • Prototype

      int Send(int8_t msgid, void *msgaddr, int subid)
      int Recv(int8_t *msgid, void *msgaddr, int subid)

    • Argument

      msgid: User can define zero or a positive Message ID (8 bit signed data). User cannot use a negative value.
      msgdata: User can define arbitrary Message Address (pointer).
      subid: Specify a SubCore number to communicate. If subid is noting, it communicates with MainCore.

    • Return

      Send() returns 0 if successful, non-zero if error.
      Recv() returns msgid if successful, negative value if error.

    • Description

      Send both Message ID and Message Address by Send() and receive these values by Recv(). This function is used when you send only the pointer address of data to communicate. When sending an address from SubCore, the conversion from virtual address to physical address is required. The address conversion of msgaddr is performed inside the Send() function. However, if the msgaddr pointer points the data with address information, you have to convert the address from virtual to physical address.

      As mentioned above, Send() is asynchronous. Send() cannot guarantee that the destination core has received the data. Therefore, if the data pointed to by the msgaddr pointer is rewritten immediately after Send(), the received data is broken. To support synchronous communication, you have to implement the communication for acknowledge. Or, it is necessary to add a flag to guarantee data in the data packet.

For usage of Send()/Recv() function, please refer to Message in Examples.

Message/MessageData

Example for data communication

Message/MessageHello

Example for address communication

2.11.2.8. Available libraries from SubCore

All of Arduino core libraries are available from SubCore.

Some Spresense-specific libraries cannot be used from SubCore. If you include them, the following error message is output at compile time.

XXX library is NOT supported by SubCore.

The following libraries are available from SubCore.

Library MainCore SubCore Description

MP

RTC

Alarm function is not available for SubCore.

SPI

Servo

SoftwareSerial

Watchdog

Wire

Audio

-

Camera

-

DNNRT

-

GNSS

-

LowPower

-

LTE

-

Sensing

-

Storage (EEPROM, eMMC, File, Flash, SDHCI)

-

2.11.2.9. SubCore Programming TIPS
How to increase heap size of SubCore program

The memory size required by SubCore is determined automatically at compile time, hereby explains the detailed logic.

The size up to .stack is determined statically at compile time, but the size of .heap depends on the user program. A minimum 32 KBytes of heap memory is assigned, and the final total size is 128 KByte alignment. The heap memory is allocated up to the aligned upper limit.

Diagram
Figure 16. SubCore program size

By the above rule, a heap area of at least 32 KBytes is assigned. However, the user programs may need more heap space. If you want to increase the heap area, use the USER_HEAP_SIZE() macro on your sketch.

USER_HEAP_SIZE(64 * 1024);

In this case, the heap memory of 64 KByte or more is always assigned.

Compile options to identify SubCore

When building SubCore, -DSUBCORE=core number is specified as compile option. If you want to divide the code by ifdef for each core in common source code, please refer to the following.

#if   (SUBCORE == 1)
// SubCore1 building

#elif (SUBCORE == 2)
// SubCore2 building

#elif (SUBCORE == 3)
// SubCore3 building

#elif (SUBCORE == 4)
// SubCore4 building

#elif (SUBCORE == 5)
// SubCore5 building

#else
// MainCore building

#endif

By applying the following description to user sketch, you can prevent the wrong core from being selected and built or uploaded.

  • Build error if SubCore is selected in MainCore’s sketch

#ifdef SUBCORE
#error "Core selection is wrong!!"
#endif
  • Build error if MainCore is selected in SubCore’s sketch

#ifndef SUBCORE
#error "Core selection is wrong!!"
#endif
  • Build error if the other core is selected in SubCore1’s sketch

#if (SUBCORE != 1)
#error "Core selection is wrong!!"
#endif
Sketch directory structure

You may want to refer to the common header file between MainCore and SubCore.
As a suggestion, for example, you can include a common common.h header file by using the following directory structure.

Diagram

In your SubSketch.ino,

#include "common.h"

In your MainSketch.ino,

#include "SubSketch/common.h"

Another option is to put a common header file in the place of libraries in your Arduino environment.
If there is the header file under libraries, it is possible to include from any sketch.
You can add the header file into your libraries by specifying the folder containing the header files from the Arduino IDE menu Sketch→ Include Library→ Add .ZIP Library …​.

2.11.3. Examples

For basic usage of the MP library, refer to example sketches under Arduino IDE menu File→ Examples→ Examples for Spresense→ MultiCore MP.

Example Description

Boot

This is an example to boot 4 SubCores. Each launched SubCore controls a separate LED.

Message/MessageData

This is an example to communicate with data between MainCore and SubCore.

Message/MessageHello

This is an example to communicate with address between MainCore and SubCore.

Mutex

This is example for exclusive control using MPMutex between multi-core.

SharedMemory

This is an example to allocate and free the shared memory from MainCore.

Shell

This is an example for SubCore to run shell.

AudioFFT

This is an example for advanced application using SubCore. MainCore captures PCM 4ch data using Audio library and send their data to SubCore. SubCore displays the peak frequency by calculating FFT (Fast Fourier Transform) in real-time. It is possible to display the time series data to Arduino IDE serial plotter.


2.12. RTC Library

RTC library controls the Spresense’s Real-Time Clock which is just a monotonically increasing counter with the initial value of 0. RTC is managed as unix time and the initial value of 0 means January 1, 1970 at 00:00:00.

RTC can keep the time during the sleep state such as Deep Sleep and Cold Sleep. When the power is turned off, the RTC counter is reset to the zero value.

When you use this library, please first, call RTC.begin(). It takes about 2 seconds until the RTC XTAL is stable after power is supplied. After returning from RTC.begin(), you can use the various RTC functions.

This library provides some features. For more details of this library, see the API reference RTC Library API.

  • RTC.setTime() …​ Set the RTC clock

  • RTC.getTime() …​ Get the RTC clock

  • RTC.attachAlarm() …​ Register the RTC alarm handler

  • RTC.detachAlarm() …​ Unregister the RTC alarm handler

  • RTC.setAlarm() …​ Set the RTC alarm

  • RTC.setAlarmSeconds() …​ Set the RTC relative alarm of the specified seconds

  • RTC.cancelAlarm() …​ Cancel the RTC alarm

For basic usage of this library, see the examples of this library through the Arduino IDE menu File → Examples → Examples for Spresense RTC.

In addition to the RTC library, you can use the POSIX standard APIs such as strftime() and clock_gettime(CLOCK_REALTIME, tp) by adding #include <time.h>.

For more information, refer to NuttX User’s Manual.

Local time has been disabled in the NuttX configuration, so localtime() is not supported.


2.13. SDHCI Library

2.13.1. Overview

The SDHCI library is a library for accessing micro SD on the Spresense extension board. The card can be accessed from your program or optionally you can configure the system to access the SD Card via USB port on the Spresense extension board.

The SDHCI library has an API structure similar to the Arduino SD library, and it can be easily ported from the existing sketch using the SD library.

  • SD and SDHC cards are supported, but SDXC cards is not supported.

  • Formats of FAT12, FAT16 and FAT32 are supported, exFAT is not supported.

  • Capacity of up to 32 GB is supported.

Unlike using a simple SPI interface, Spresense accesses the SD card using dedicated hardware for SD Host Controller Interface, which has the following features:

  • Since the SD card is connected with a dedicated port, the SPI pins are not required. The SPI pins can be used for other purposes.

  • It is very fast compared with SPI communication. SDR25 transfer mode, at approximately 25 MB per second, is supported.

A distinctive feature of the SDHCI Library is providing the USB MSC (Mass Storage Class) function. You can directly access the file on the SD card by connecting to the USB on the Spresense extension board from your PC.

If the current time of 1980/1/1 or later is set by Section 2.12, the created and modified timestamps of files and directories based on the RTC time will be recorded in the file system.

2.13.2. Functions

See API references SD card Library API for the details.

SDHCI library doesn’t have an instance of SDClass, therefore please define as below in your sketch.

#include <SDHCI.h>
SDClass SD;
Function Description

SD.begin()

Check if the SD card is mounted. After this function returns true, you can call the other APIs.
If the SD card is not mounted, this function returns false after retrying for 2 seconds.

SD.beginUsbMsc()

Start USB MSC (Mass Storage Class) function.

SD.endUsbMsc()

Stop USB MSC (Mass Storage Class) function.

SD.format()

Format the SD card with FAT32 filesystem by default.

SD.open()

Opens a file on the SD card. When the file is opened for writing, it will be created if it doesn’t exist yet.
FILE_READ: open the file for reading, starts at the beginning of the file.
FILE_WRITE: open the file for reading and writing, starts at the end of the file.
This function returns File object. See File library for file operations.

SD.exists()

Tests whether a file or directory exists on the SD card.

SD.mkdir()

Create a directory on the SD card.

SD.rmdir()

Remove a directory from the SD card..

SD.remove()

Remove a file from the SD card.

2.13.3. Examples

Use the SD card formatted with FAT32. Three sample sketches using SDHCI library are provided here:

Example Description

read_write.ino

This is an example to read and write files on the SD card.

UsbMsc.ino

This is a sample for the USB MSC function. If you run this sketch, the SD card on the Spresense extension board will be mounted as a drive on the PC and you will be able to access the SD card directly from the PC.

UsbMscAndFileOperation.ino

This is an application combining USB MSC function and file operations.
For files on the SD card, file operation from an application program and the file operation from PC, with USB MSC, must be operated exclusively and can not be used at the same time.
In this sample sketch, after acquiring and displaying the file list from the application program the USB MSC function is enabled. You can use the USB MSC function from the PC to operate the files in the SD card. Furthermore, by terminating the USB MSC function, file operation is performed again from within the program.


2.14. Sensing Library

Spresense has the function of low-power always sensing and the high performance of edge computing. It is possible to create a sensor (called a logic sensor) that can output abstract data that fused various sensor data by signal processing / AI processing, etc., resulting in a smaller amount of data.
The Sensing Library provide a framework to use and create logic sensors by such sensor fusion.

Logic sensors can recognize and signal process that are used Multi Core, which is a feature of Spresense, to perform signal / recognition processing with other cores (hereinafter these cores are called DSP).

Key Features of the Sensing Library
  • Based on Publish-Subscribe Architecture, it is easy to execute and change the fusions of multiple sensors

  • It can use data that the sensor driver created by Arduino-supplied ecosystem sensor, and can create logic sensor and subscribed by Arduino application, the same function as SDK can be used from Arduino

Arduino library is basically a wrapper library the functions and APIs possessed by the SDK.
For more information, please refer to the SDK side.

2.14.1. Architecture and data flow

First, here is the Sensor Framework of Spresense.

Please refer to Sensor Fusion Framework for this.

Sensor Framework(Publish/subscribe) Architecture
Figure 17. Sensing Library (Publish/subscribe) Architecture

Next, the following is the architecture of the Sensing library for Arduino.

Sensor Framework(Publish/subscribe) Architecture
Figure 18. Sensing Library (Publish/subscribe) Architecture

By providing the Sensor Framework part provided by Spresense SDK as a "Sensing" library, the functionality equivalent to the SDK is realized.
For Arduino developers, we provide a framework for creating sophisticated logic sensors and applications using these sensors.
You can also create applications that use logic sensors that better meet your needs by creating logic sensors with a higher degree of abstraction yourself.

Classes of Sensing Library
  • SensorManagerClass:
    It is a wrapper class of the class (Sensor Manager) that manages each sensor client in SDK.

  • SensorClient:
    the base class of sensorclient which is an element of each sensor. Users do not call this class directly.
    Inherit this class if you want to create your own logic sensor.

    • AccelSensorClass:
      Each sensor client can use acceleration data by publishing the sensor data acquired from the physical sensor client of the acceleration sensor with the sensor sensor driver at Arduino.

    • ApplicationSensorClass:
      The application is a sensor client for subscribing sensor data.

      • StepCountReaderClass:
        This is a sensor client for reading data of step counter sensor in application. It is created inheriting from ApplicationSensorClass.

    • AesmClass:
      This is a logical sensor client for pedometer algorithm (AESM: Activity Engine and StepMeter) provided by Spresense SDK .
      It use an acceleration sensor.
      Because of logic sensor provided by SDK, publish/subscribe processing from Arduino is unnecessary.

2.14.2. API reference of each classes

It is shown below, the API reference for each classes.

2.14.2.1. SensorManagerClass

It is shown below, the API of SensorManagerClass.

begin
begin();
  • Begin Sensor Manager. Call it once before using the framework.

end
end();
  • End Sensor Manager. Call once after using the framework.

2.14.2.2. SensorClient

It is shown below, the API of SensorClient. This class is a base class for each sensor client.

begin
begin(int      id,
      uint32_t subscriptions        = 0,
      int      rate                 = 0,
      int      sample_watermark_num = 0,
      int      size_per_sample      = 0,
      sensor_data_mh_callback_t cb  =NULL):

Call this once only when creating a sensor client.

  • int id
    This is the sensor client ID.

  • uint32_t subscriptions
    Specify the sensor you want to subscribe to. By setting ID-th bit to 1, you can read the data of that ID.

  • int rate
    Specify the sampling rate of sensor data to be input.

  • int sample_watermark_num
    Specify the number of max samples of one process.

  • int size_per_sample
    Specify the size of 1 sample.

  • sensor_data_mh_callback_t cb
    Specify a callback to be called when sensor data is subscribed.

publish
int publish(FAR void* data,
            uint32_t  size_per_sample,
            uint32_t  freq,
            uint32_t  sample_watermark_num,
            uint32_t  timestamp);

This API publishes sensor data acquired/generated by sensor client.

  • FAR void * data
    Specify the address of sensor data to send.

  • uint32_t size_per_sample
    Specify the size of 1 sample.

  • uint32_t freq
    Specify the sampling rate of sensor data to be input.

  • uint32_t sample_watermark_num
    Specify the number of samples in this call.

  • uint32_t timestamp
    Specify the timestamp of the first sample of sensor data to be sent.

int publish(PoolId    id,
            FAR void* data,
            uint32_t  size_per_sample,
            uint32_t  freq,
            uint32_t  sample_watermark_num,
            uint32_t  timestamp);

This API is needed if you define your own memory management area for reduce memory. Currently not used.

int publish(MemMgrLite::MemHandle& mh,
            uint32_t size_per_sample,
            uint32_t freq,
            uint32_t sample_watermark_num,
            uint32_t timestamp);

Calls management of sensor data in the sensor client when using MHandle of MemoryUtil. Currently not used.

subscribe
int subscribe(sensor_command_data_mh_t& data);

By calling SensorClient subscribe, you can obtain the address where the sensing data is stored. Please use it on SubClass.

The subscribed data type is

sensor_command_data_mh_t

This is defined in Spresense SDK.

typedef struct
{
  sensor_command_header_t header;  /**< command header    */
  unsigned int self: 8;            /**< sender sensor ID  */
  unsigned int time: 24;           /**< time stamp        */
  unsigned int fs: 16;             /**< frequency         */
  unsigned int size: 16;           /**< number of samples */
  MemMgrLite::MemHandle  mh;       /**< mem handle for send data */

  unsigned int get_self(void)
  {
    return self;
  }

} sensor_command_data_mh_t;

Please get it as needed, such as timestamp information.

2.14.2.3. AccelSensorClass

The physical sensor clients for acceleration sensing are also provided as a library. It is made in the inheritance of SensorClient.

begin
bool begin(int id,
           int rate                 = 0,
           int sample_watermark_num = 0);

Begin an accelerometer client.

  • int id
    This is specify the sensor ID. Specify SEN_accelID .

  • int rate
    Specifies the sampling rate of the accelerometer. If use the StepCounter (AESM) provided, please set it to 50 Hz.

  • int sample_watermark_num
    It is the number of transfer samples at one time. You can specify 50 or less. Specify 50 unless you need to make a change.

write_data
int write_data(float x,
               float y,
               float z);

It is a function that actually writes acceleration data. Convert the data acquired from the sensor to G and write it. This interface will be written by one sample. And publishes sensor data to clients, when sensor data is written sample_watermark_num samples.

2.14.2.4. ApplicationSensorClass

Application sensors are sensor clients for passing sensor data to applications. Therefore, only subscribe is implemented.

begin
bool begin(int id,
           uint32_t subscriptions,
           sensor_data_mh_callback_t cb);
  • int id
    This is specify the sensor ID. Specify SEN_app * ID (*: 0 ~ 3) .

  • uint32_t subscriptions
    Specify the sensor you want to subscribe to. Here, by setting the ID-th bit to 1, you can read the data of that ID.

  • sensor_data_mh_callback_t cb
    Specify a callback to be called when sensor data is subscribed.

subscribe
int subscribe(sensor_command_data_mh_t& data);

By subscribe, data of desired sensor (physical sensor / logical sensor) can be acquired. Please implement according to the application.

2.14.2.5. StepCountReaderClass

One of application sensors, it is an application sensor client prepared to read StepCounter data.

begin
bool begin(int      id,
           uint32_t subscriptions,
           sensor_data_mh_callback_t cb);
  • int id
    This is specify the sensor ID. Specify SEN_app * ID (*: 0 ~ 3) .

  • uint32_t subscriptions
    Specify the sensor you want to subscribe to. Here, since the logic sensor of StepCounter is read, please specify SUBSCRIPTION (SEN_stepcounterID) .

  • sensor_data_mh_callback_t cb
    Specify a callback to be called when sensor data is subscribed.

subscribe
int subscribe(sensor_command_data_mh_t& data);

By subscribe, data from Step Counter’s logic sensor can be acquired.

The data structure to be notified is as follows.

typedef struct
{
  SensorExecResult exec_result;

  union
    {
      StepCounterStepInfo steps;
      SensorAssertionInfo assert_info;
    };
} SensorResultStepCounter;

Actually StepCounterStepInfo steps; is an entity of sensor data.

It is shown below, the sensor data of StepCounter.

typedef struct {

  float    tempo;
  float    stride;
  float    speed;
  float    distance;
  uint32_t step;
  StepCounterMovementType  movement_type;
  uint64_t          time_stamp;

} StepCounterStepInfo;
2.14.2.6. AesmClass:

This is a sensor client for calling the step counter library, prepared by Sony. This algorithm recommended to use BMI160 that Bosch’s accelerate sensor, but it can use acceleration data if can be got a desired sampling rate from another accel sensor sensor.

begin
bool begin(int      id,
           uint32_t subscriptions,
           int      input_rate,
           int      input_sample_watermark_num,
           int      input_size_per_sample);

   * int id
This is specify the sensor ID. Specify SEN_stepcounterID .

  • uint32_t subscriptions
    Specify the sensor you want to subscribe to. Here, since the physical sensor of AccelSensor is read, please specify SUBSCRIPTION (SEN_accelID) .

  • int rate
    Specify the sampling rate of sensor data to be input. Since this algorithm is based on 50Hz, please set it to 50.

  • int sample_watermark_num
    Specify the number of samples in one process. Since this algorithm performs processing in units of one second, set it to 50.

  • int size_per_sample
    There are three float values for x, y and z, so specify 12.

set
int set(uint8_t walking_stride,
        uint8_t running_stride)

It is a function to set the stride. Currently not available.

2.14.3. About the sample sketch

2.14.3.1. Step Counter sample

Here, for a Sensing sample, we provide the sample using StepCounter provided by SONY.

This sample requires to update to the Spresense SDK v1.3.0 or later bootloader.

The Step Counter function in Spresense SDK consists of the following.

Please refer to Sensor Fusion Framework for this.

Sensor Framework(Publish/subscribe) Architecture
Figure 19. Sensing Library (Publish/subscribe) Architecture

For Arduino, the part of Sensing library shown in the figure below is provided as a library.

Sensor Framework(Publish/subscribe) Architecture
Figure 20. Sensing Library (Publish/subscribe) Architecture

A sample sketch can be implemented by implementing the part that writes the acceleration sensor to the reading framework and the part that reads the generated StepCounter data.

The following is the sequence.

Diagram
Figure 21. Initialization sequence
Diagram
Figure 22. Execution sequence

In this way, StepCounter data can be obtained by implementing it.

For details on how to use, please refer to Tutorials.


2.15. Servo Library

The Servo library is one of the available libraries on Spresense board to control the RC Servo.

The Servo library is used the same way as the original Arduino servo library. The Arduino language reference have documented the Arduino Servo library and these instructions can be used for the Spresense Servo library too.

Spresense has 4 pins that can be used by the Servo library. These are the PWM pins on the extension board:

  • D06 PWM0

  • D05 PWM1

  • D09 PWM2

  • D03 PWM3

Most Servos are designed for a 5V power supply and draw considerable power, so you should power them from a separate supply, not the +5V pin on the Extension board.

The extension board interface voltage is set by the IOREF jumper to 3.3 or 5V. Most radio control servos can use 3.3 or 5V control signals.

2.15.1. Limitations

  • The Spresense Servo library supports up to 4 Servos.


2.16. SignalProcessing Library

The Spresense SignalProcessing library is the library for basic signal processing for sensing and audio.

The main features of the SignalProcessing library

  • Performs multi-channel FFT processing.

  • Performs bi-quadratic IIR filtering.

Input Data

  • Input multi-channel data interleaved for each channel.

Out Data

  • FFT: Outputs the FFT result for each channel.

  • IIR: Outputs interleaved multi-channel data after signal processing.

Considering memory resources, processing time, etc., each signal processing only supports 16-bit length.

2.16.1. Library Structure

The SignalProcessing library consists of three objects.

  • FFTClass
    Object that performs FFT processing

  • IIR Class
    An object that performs IIR filtering

  • RingBuff
    the ringbuffer for storing multi-channel input data
    (The user does not need to be aware.)

The data flow in each objects has the following structure.

  • FFT

Diagram
  • IIR

Diagram

Input data is stored in the RingBuff class through FFT/IIR class IF.
When receiving a request of get , it outputs data while performing each signal processing.

2.16.2. Multi-channel data of input/output

The multi-channel data of input/output should have the following interleaved data format.

  • Incase of 16bit-length

Diagram
  • Incase of 24bit-length

Diagram
In the case of 24 bits, please align with 32 bits and store the data in the lower 24 bits.

2.16.3. FFT library details

The following parameters are statically specified for each instance (specified at compile time).

  • Maximum number of channels
    Allocate of memory resources for the maximum number of channels needed. The actual number of channels do not have to be the same as this number, but have to be less than this.

  • Number of FFT taps
    Specify the number of FFT taps to be executed. The number of taps that can be specified is as follows.
    32 / 64 / 128 / 256 / 512 / 1024 / 2048 / 4096

If you increase the maximum channels and the number of taps, the memory resources will be used more, so please set it according to your purpose.
The number of taps is specified at compile time by the template variable, so if you want to change the number of taps at the time of execution, create plural instances with different number of taps and use them.

The following parameters can be changed via begin.

  • Window function
    Specify the window function to be applied to FFT. The window function only supports the following.

-Rectangular window
-Hanning window
-Humming window
-Flattop window

  • Overlap size
    When performing FFT by applying a window function etc., it is possible to overlap the input data. Specify the number of overlapping samples.
    It is possible to specify from 0 to half the size of the number of FFT taps.

2.16.4. IIR library details

The following parameters are statically specified for each instance (specified at compile time).

  • Maximum number of channels
    Allocate of memory resources for the maximum number of channels needed. The actual number of channels do not have to be the same as this number, but have to be less than this.

  • Bit length
    It is the bit length of the input data. Currently, only 16 bit is supported.

  • Frame size
    Specify the number of samples for one execution of IIR processing. Decreasing the value reduces the delay until processing, but increases the overhead.

The following parameters can be changed via begin.

  • Filter mode
    Specifies what kind of filter the IIR will implement. The following modes can be set.

-HPF (High Pass Filter)
-LPF (Low Pass Filter)
-BPF (Band Pass Filter)
-BEF (Band Elimination Filter)

  • Cutoff frequency (HFP/BPF)/Center frequency (BPF/BEF)
    Specifies the cutoff frequency or center frequency of the filter.

  • Q value
    Specifies the Q value of the filter.

  • Frame size
    Specifies the number of samples to be executed once for IIR processing. Decreasing it will reduce the processing delay, but will increase the overhead. The default value is 768 samples.

  • Output channel mapping
    Specifies the mode of channel mapping for filter results. You can select either of the following.

    • Interleave (interleave each channels output )

    • Planar (output per channels)

  • Sampling rate
    Specifies the sampling rate of the input data. The default value is 48000Hz.

2.16.5. How to use (sequence)

2.16.5.1. FFT sequence

The sequence of FFT library is as follows.

Diagram
  • Please refer to the above for the parameters that can be specified in begin .

  • The number of input samples in put does not have to be the same as the number of taps in FFT.

  • If the library have sufficient input data (more than the number of FFT taps) when you call get, you can get the signal processing result.
    If signal processing is successful, the number of input data samples (in the case of FFT, the number of taps minus the number of overlapping samples) discarded in this processing is returned. By inputting only the discarded samples, the next signal processing is possible.

  • The number of data will be equal to the number of taps regardless of overlapping samples.

The input buffer will be overwritten with old data if input exceeds the buffer size. Be careful not to overflow the input buffer.
2.16.5.2. IIR sequence

The sequence of IIR library is as follows.

Sequence with output format Planar
Diagram
1 Please refer to the above for the parameters that can be specified in begin . If you want the output format to be Planar, you must either not specify the output format with begin or specify the output format with Planar.
2 The number of input samples in put does not have to be the same as the number of frame samples in IIR.
3 If the library have sufficient input data (more than the number of frame samples) when you call get, you can get the signal processing result.
If signal processing is successful, the number of input data samples (in the case of IIR, the number of frame samples) discarded in this processing is returned. By inputting only the discarded samples, the next signal processing is possible.
If you specify the output format to Planar on begin, you should call get function with channel number for each channel.
The input buffer is stored for the size of INPUT_BUFFER_SIZE times of the output frame. The input buffer will be overwritten with old data if input exceeds the buffer size. Be careful not to overflow the input buffer.
4 end releases various resources.
Sequence with output format Interleave
Diagram
1 Please refer to the above for the parameters that can be specified in begin . If you want the output format to be Interleave, you must specify the output format with Interleave.
2 The number of input samples in put does not have to be the same as the number of frame samples in IIR.
3 If the library have sufficient input data (more than the number of frame samples) when you call get, you can get the signal processing result.
If signal processing is successful, the number of input data samples (in the case of IIR, the number of frame samples) discarded in this processing is returned. By inputting only the discarded samples, the next signal processing is possible.
The input buffer is stored for the size of INPUT_BUFFER_SIZE times of the output frame. The input buffer will be overwritten with old data if input exceeds the buffer size. Be careful not to overflow the input buffer.
4 end releases various resources.

2.16.6. About API details

For details on each API, refer to the API reference.
Signal Processing Libraries API

2.16.7. About error information

When an error occurs in APIs such as begin,put, and get, you can get what is the cause of the error with getErrorCause.

The following is the error code.

Table 20. Arduino Signal Processing Lib Error Code
Error Code Value Description

ECODE_OK

0

Normal termination

ERR_CH_NUM

-1

The number of channels specification error

ERR_FORMAT

-2

Output format specification error

ERR_MEMORY

-3

Memory allocation failure

ERR_FILTER_TYPE

-4

Filter type specification error

ERR_FRAME_SIZE

-5

Frame size specification error

ERR_BUF_FULL

-6

Failed to get write area for buffer

ERR_FS

-7

Sampling rate specification error

In the event of an error, get returns an error code in the return value, and at the same time,getErrorCause can be used to get the cause of the error.

2.16.8. Sample sketches

2.16.8.1. Sample sketches using FFT library

The sample sketches using FFT is as follows.

  • PeakDetector

  • SoundDetector

2.16.8.2. Sample sketches using IIR library

The sample sketches using IIR is as follows.

  • HighPassSound

  • LowPassSound

2.16.8.3. About sample code using FFT and IIR library

The sample sketches using FFT and IIR is as follows.

  • VoiceChanger

See the tutorial for detailed information on each sample sketches.


2.17. Software Serial Library

The Spresense Arduino Library natively supports 2 serial ports: the header pins D0 D1 and the main board USB port. The SoftwareSerial library provides serial communication on any digital pins of the Spresense.

The SoftwareSerial library is used the same as the SoftwareSerial Library described in Arduino language reference and is compatible with the examples given on that page.

The pin numbers of the receiver and transmitter pins are specified as arguments in SoftwareSerial(uint8_t receivePin, uint8_t transmitPin). Both pins are used by switching to GPIO mode, and switching to GPIO mode is done in units of pin groups.

For details on pin groups, see Connector Pin List (xlsx) for more information. The receiver pin receivePin is also used as an interrupt pin. See Interrupts - Digital pin for constraints on which pins are used for interrupts.


2.18. SPI Library

The SPI library has been developed to allow the use of SPI devices with Spresense.

The SPI library is used in the same way as SPI Library described in Arduino language reference.

Spresense has multiple SPI interfaces for main board and extension board respectively.

The pins allocated to SPI are shown below.

Table 21. SPI interface pins
SPI instance Connector MOSI MISO SCK SS IO voltage

SPI (or SPI4)

extension board

D11

D12

D13

D10

3.3V or 5V (Jumper switch JP1)

SPI5

main board

D16

D17

D23

D24

1.8V

When SPI.beginTransaction() is called, SPI4 on extension board is used. When you’d like to use SPI5 on the main board, you can use SPI5.beginTransaction() with instance name of SPI5.

2.18.1. Features and Limitations

  • This Library supports the transfer of 8 bit or 16 bit length.

  • SPI CS automatically goes low at the start of each transaction and high at the end of each transaction. This make coding easier and is useful for high speed data transfer. If this does not suit your application, or you want to use multiple SPI devices use a different pin for CS and control it using digitalWrite().

  • The behavior of SS is different for each SPI_MODE (purple: SPI_CS_X signal in below figure). In SPI_MODE0 and SPI_MODE2, SS returns to HIGH for each word transferred. On the other hand, in SPI_MODE1 and SPI_MODE3, SS is set to LOW during data transfer. When SPI transfer is performed by CPU, it returns to HIGH if the transfer is interrupted by any interrupt.

    SPI_MODE0 SPI_MODE1

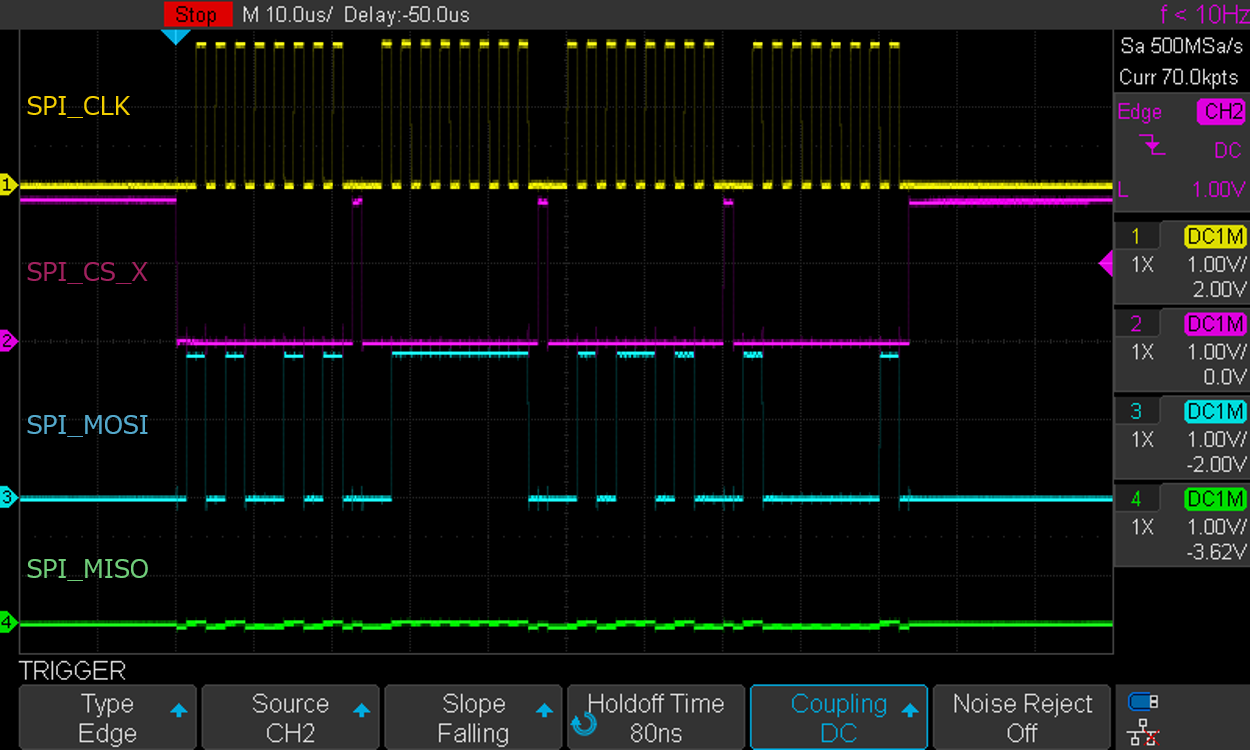

    spi mode0

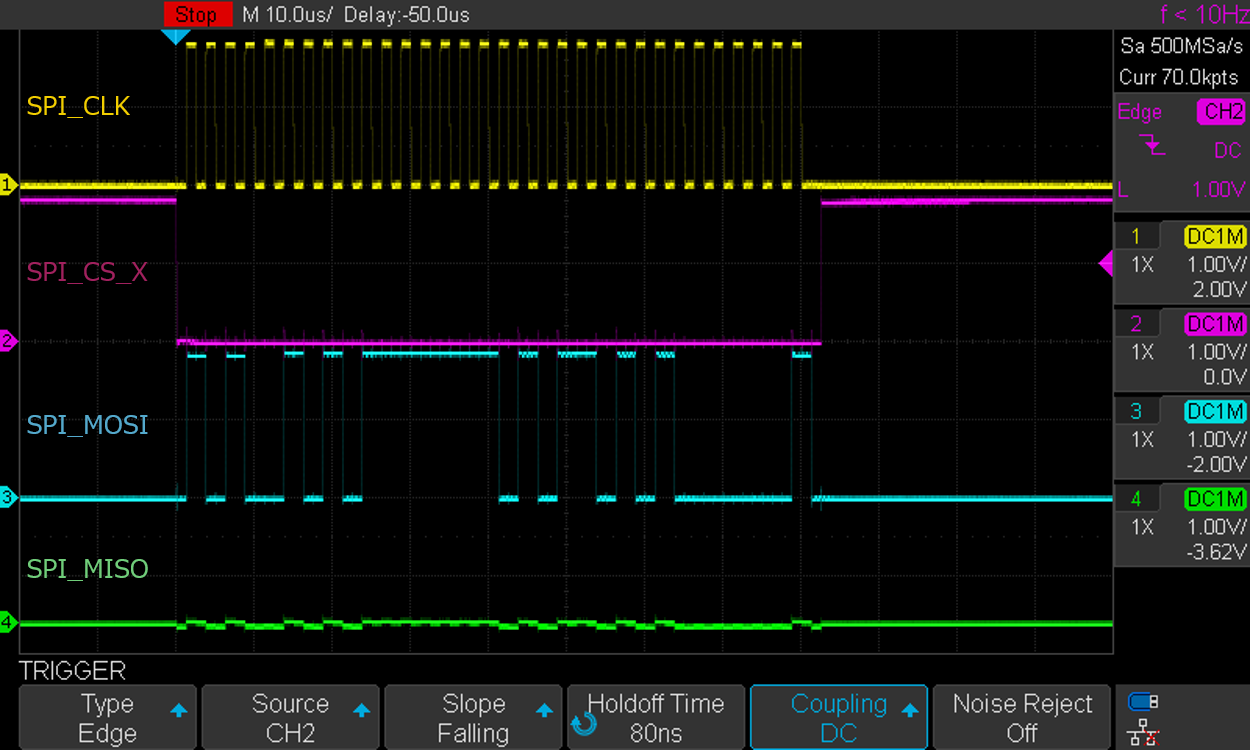

    spi mode1

    SPI_MODE2

    SPI_MODE3

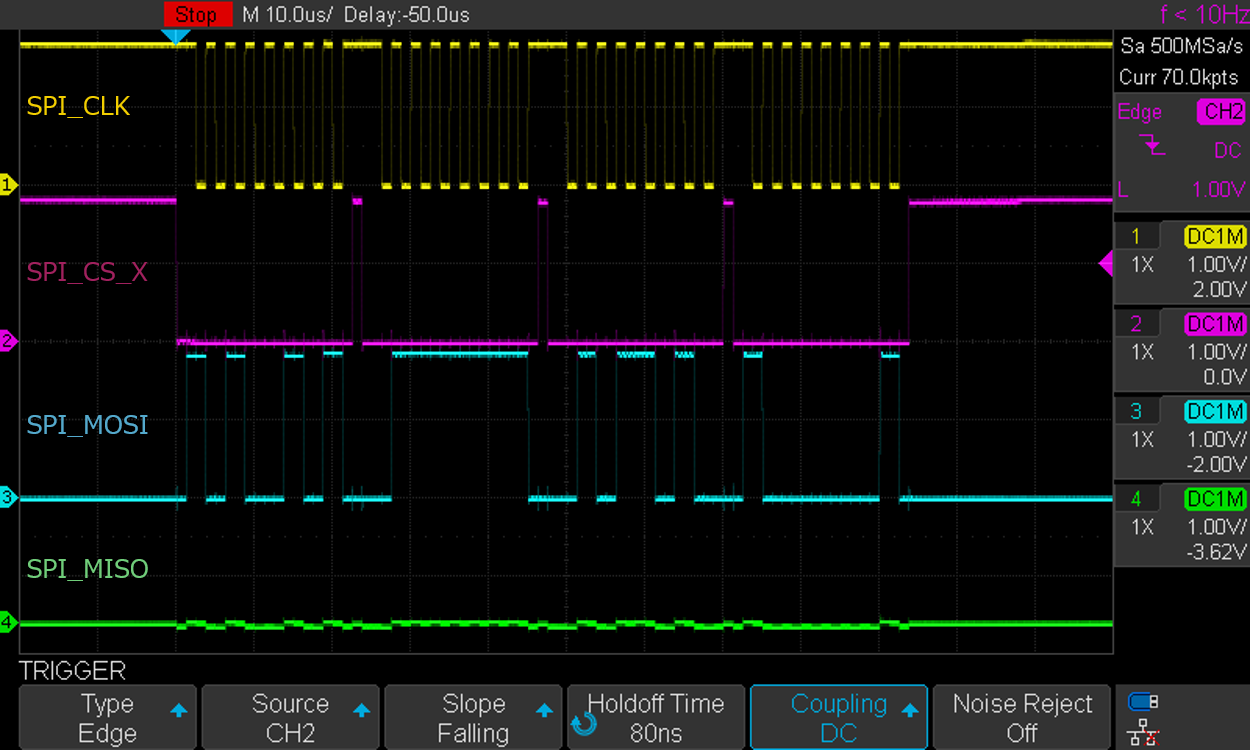

    spi mode2

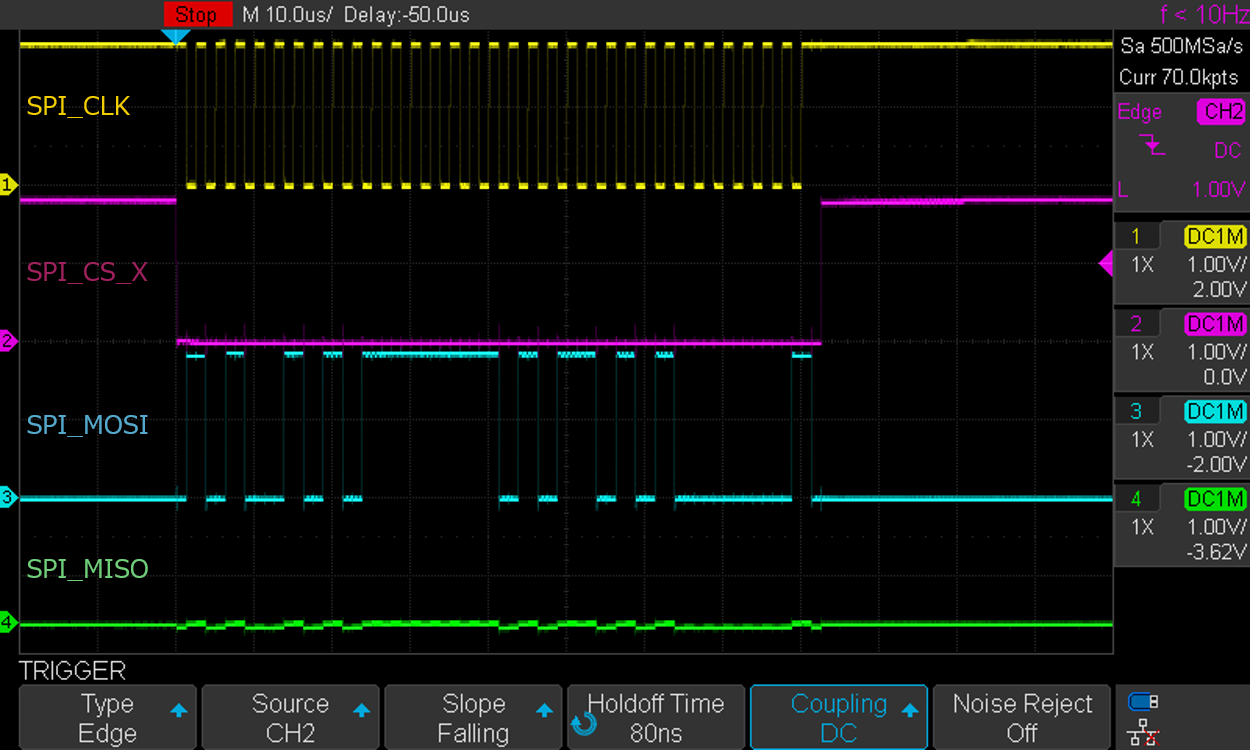

    spi mode3
  • 16 bit data is sent using Little Endian which the least significant value (bit 0-7) in the sequence is stored first.

  • See the Hardware Documents How to use the SPI for the maximum speed supported.

  • For an example of usage in the Arduino IDE see File →Examples → Example for SPRESENSE → SPI.


2.19. Storage Library

2.19.1. Overview

The Storage library defines a base class for various storage libraries as SDHCI, Flash and eMMC.

Basically, it is referred from SDHCI, Flash, eMMC libraries for each device. But you can also use the Storage library directly by specifying an absolute filename including the mount path.

The relationship between various storages and mount path is shown below for reference.

Device Mount Path

SD card

/mnt/sd0

Flash

/mnt/spif

eMMC

/mnt/emmc

2.19.2. Functions

See API references Storage Library API for the details.

Function Description

Storage.open()

Opens a file with the absolute path on the storage device. When the file is opened for writing, it will be created if it doesn’t exist yet.
FILE_READ: open the file for reading, starts at the beginning of the file.
FILE_WRITE: open the file for reading and writing, starts at the end of the file.
This function returns File object. See File library for file operations.

Storage.exists()

Tests whether a file or directory exists on the storage device.

Storage.mkdir()

Create a directory on the storage device.

Storage.rmdir()

Remove a directory from the storage device..

Storage.remove()

Remove a file from the storage device.

2.19.3. Examples

A sample sketch using Storage library are provided here:

Example Description

read_write.ino

This is an example to read and write files on the storage device.


2.20. Watchdog Library

The Spresense Watchdog library can trigger HW reset by using HW watchdog when system malfunctions from some use cases.

This library contains these functions:

  • Set the time until HW reset is executed

  • Acquire the time to reset

  • Reset time to reset

For example, you can use this library If you want to trigger HW reset, when the time that is enough for finishing all the processes expires in the loop() function.

2.20.1. How to use

Follow these steps to use this Library, also use Watchdog for WatchdogClass instance.

  1. Initialize a watchdog by using Watchdog.begin()

  2. Start to monitor by using Watchdog.start(time)

    You need to set time (ms) ⇐ 40000 for timer to trigger HW reset.

  3. Reset timer by using Watchdog.kick() notify the system to keep-alive.

    If program is working fine, please execute kick() to notify the system to keep-alive.

  4. When it is not necessary to monitor by Watchdog, please execute Watchdog.stop()

    If you do not call Watchdog.stop() or Watchdog.kick() , watchdog timer will expire and will trigger HW reset.

If you want to check the time remaining for trigger HW reset, you can use Watchdog.timeleft().

Diagram
Watchdog timer will be reset when clock mode change by Section 2.9 or insert a SD card.

2.20.2. Sample

You can check Watchdog example sketch at Arduino IDE File > Examples > Watchdog > Watchdog_bite.


2.21. Wire Library

The Wire library allows Spresense to communicate with I2C / TWI devices.

The Wire library is used the same way as the Arduino Wire Library described in the Arduino language reference and is compatible with the examples given on that page.

The pins allocated to Wire are shown below.

Table 22. Wire(I2C) interface pins
Wire instance connector SCL SDA IO voltage

Wire

main board

D15

D14

1.8V

Wire

extension board

D15

D14

3.3V or 5V (Jumper switch JP1)

Wire1

extension board

D09

D03

3.3V or 5V (Jumper switch JP1)

Wire1

LTE extension board

D09

D03

3.3V or 5V (Jumper switch CN2)

The extension board interface voltage is set by the IOREF jumper to 3.3 or 5V. This sets the interface voltage for I2C. The D14, D15 pins also appear on the main board. The interface voltage is then 1.8V along with all other GPIO on the main board.

I2C communication requires the use of pull-up resistors.

  • The Spresense extension board includes 1k Ohms pull-up resistors so no additional components are required.

  • The Spresense main board includes 4.7k Ohms pull-up resistors so no additional components are required.

2.21.1. Features and Limitations

The port supports communication at 2 speeds which are defined in the library.

  • #define TWI_FREQ_100KHZ (100000) // standard mode

  • #define TWI_FREQ_400KHZ (400000) // fast mode

The default is standard mode, 100kHz. To change the speed to 400kHz, use the setClock(TWI_FREQ_400KHZ) function.

The library supports two I2C address lengths.

  • #define TWI_ADDR_LEN_7_BIT (7)

  • #define TWI_ADDR_LEN_10_BIT (10)

The default is 7 bit.

Like the original Arduino Wire library this library implementation uses a 32 byte buffer, therefore any communication should be within this limit. Exceeding bytes in a single transmission will just be dropped.
